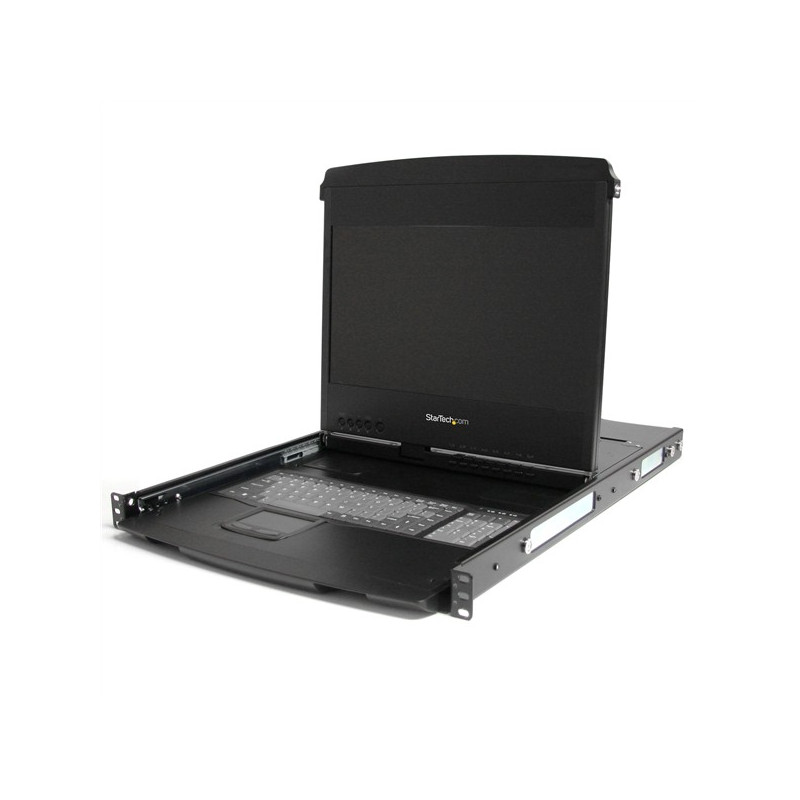

StarTech.com 1U 17” HD 1080p Dual Rail Rackmount Widescreen LCD Console
StarTech.com 1U 17” HD 1080p Dual Rail Rackmount Widescreen LCD Console
The RACKCOND1701 1U 17-inch Rack Mount LCD Console Drawer offers a high resolution LCD display, full keyboard and touchpad console, allowing you to centrally manage and monitor your servers and KVM switches using a space-saving 1U of rack space.
The LCD Console drawer features an innovative dual-rail system that allows the display to slide independently from the keyboard/touchpad tray, giving system administrators the ability to use the device as a monitoring station while the keyboard is neatly tucked away inside the rack. Unlike other 17-inch LCD Rack Consoles, this unit supports VGA resolutions up to 1920x1080 for crystal clear high definition display, while an LED Backlight reduces power consumption by up to 50%.
The Rack Console features an integrated single port KVM module enabling direct connections to a single system or to KVM switches in a cascaded configuration for centralized control of multiple systems.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Create a central monitoring point within your rack, through the dual-rail design
- Maximize screen real estate with a Full HD 1080p display
- Increase longevity, with a replaceable keyboard and touchpad
The LCD Console drawer features an innovative dual-rail system that allows the display to slide independently from the keyboard/touchpad tray, giving system administrators the ability to use the device as a monitoring station while the keyboard is neatly tucked away inside the rack. Unlike other 17-inch LCD Rack Consoles, this unit supports VGA resolutions up to 1920x1080 for crystal clear high definition display, while an LED Backlight reduces power consumption by up to 50%.
The Rack Console features an integrated single port KVM module enabling direct connections to a single system or to KVM switches in a cascaded configuration for centralized control of multiple systems.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Create a central monitoring point within your rack, through the dual-rail design
- Maximize screen real estate with a Full HD 1080p display
- Increase longevity, with a replaceable keyboard and touchpad
Data sheet
- AC adapter included
- Yes
- AC adapter input voltage
- 100 - 240 V
- Certification
- CE, FCC, UL
- Colour of product
- Black
- Contrast ratio (typical)
- 500:1
- DC-in jack
- Yes
- Depth
- 480.8 mm
- Dimensions (WxDxH)
- 680 x 480.8 x 43.8 mm
- Display
- TFT
- Display brightness
- 300 cd/m²
- Display diagonal
- 17 "
- Display resolution
- 1920 x 1080 pixels
- Height
- 43.8 mm
- I/O ports
- 1 x DB15 (VGA),
1 x USB B,
2 x PS/2 - Interface
- XFP
- Keyboard port type
- USB, PS/2
- Material
- Steel
- Mean time between failures (MTBF)
- 50000 h
- Mouse port type
- USB, PS/2
- Number of computers controlled
- 1
- Operating relative humidity (H-H)
- 0 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Package dimensions (WxDxH)
- 543 x 812 x 203 mm
- Package weight
- 22900 g
- Power consumption (typical)
- 16 W
- Power supply input voltage
- 110 - 240 V
- Rack capacity
- 9U
- Response time
- 8 ms
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Video port type
- VGA
- Viewing angle, horizontal
- 140 °
- Viewing angle, vertical
- 120 °
- Weight
- 15600 g
- Width
- 680 mm
Specific References
- EAN13
- 0065030832533
