StarTech.com RKCONS1716GB

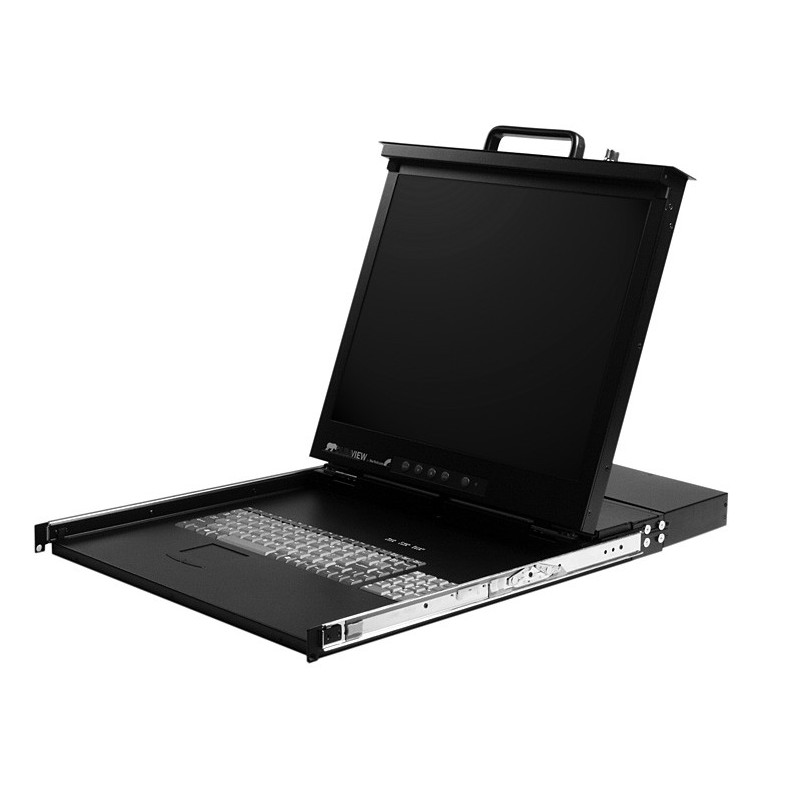

RKCONS1716GB, 1U 17" Rackmount LCD Console with Integrated 16 Port KVM Switch
The RACKCONS1716GB 1U 17-inch Rack Mount LCD Console features an integrated 16-Port KVM Switch, to provide centralized control for servers and KVM switches with a 17-inch LCD monitor, full 106-key keyboard and touchpad neatly combined into 1U of space in any standard rack or cabinet (30-inches or greater) in depth.
A secure solution, the rack-mount console includes a key-lock mechanism as well as individual port password protection for preventing unauthorized access. When not in use, it's as simple as folding the LCD display and sliding it back into the rack on the sturdy mounting rails (included).
A highly-scalable server control solution, the rack console can control up to 136 computers by cascading 8 additional 16 port KVM switches. For added versatility, the console is compatible with virtually any existing KVM switch as well as with most PC, Mac® and Sun® systems.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Key-lock mechanism and per-port password protection work to provide a secure server management solution by preventing unauthorized users from accessing your critical equipment
- 16 port Universal KVM module connects to almost any server platform or existing KVM allowing for scalability in your server environment
- Rugged 1U metal chassis with included mounting rails improves space efficiency inside cabinets, allowing larger systems to fit into less cabinet space
A secure solution, the rack-mount console includes a key-lock mechanism as well as individual port password protection for preventing unauthorized access. When not in use, it's as simple as folding the LCD display and sliding it back into the rack on the sturdy mounting rails (included).
A highly-scalable server control solution, the rack console can control up to 136 computers by cascading 8 additional 16 port KVM switches. For added versatility, the console is compatible with virtually any existing KVM switch as well as with most PC, Mac® and Sun® systems.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Key-lock mechanism and per-port password protection work to provide a secure server management solution by preventing unauthorized users from accessing your critical equipment
- 16 port Universal KVM module connects to almost any server platform or existing KVM allowing for scalability in your server environment
- Rugged 1U metal chassis with included mounting rails improves space efficiency inside cabinets, allowing larger systems to fit into less cabinet space
Data sheet
- AC adapter input voltage
- 110 - 240 V
- Colour of product
- Black
- Contrast ratio (typical)
- 500:1
- Depth
- 470 mm
- Dimensions (WxDxH)
- 440 x 470 x 44 mm
- Display
- TFT LCD
- Display brightness
- 250 cd/m²
- Display diagonal
- 17 "
- Display resolution
- 1280 x 1024 pixels
- Form factor
- 1 U
- Height
- 990mm
- I/O ports
- 16 x VGA
- Interface
- VGA, PS/2
- Mean time between failures (MTBF)
- 60000 h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Package weight
- 19600 g
- Power supply input voltage
- 110-240 V
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -20 - 60 °C
- Viewing angle, horizontal
- 140 °
- Viewing angle, vertical
- 140 °
- Weight
- 11000 g
- Width
- 993 mm
Specific References
- EAN13
- 0065030842815
