CCS 620mm Deep Wall Mount Data Cabinets

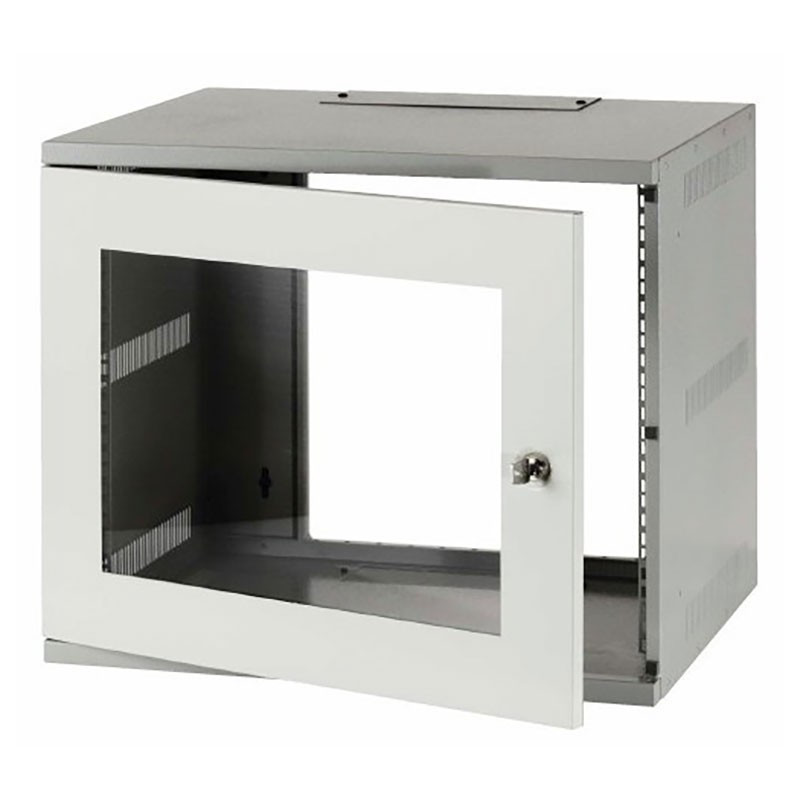

620mm Wall Cabinet in Grey with Perspex Front Door
Available in sizes from 6U to 21U.
The Lightweight Wall Mounting Cabinets feature fixed profiles and a large cutout panel at the rear.
The cabinet is finished in goose grey with a lockable ash grey perspex inset door.
19” Wall Mounted Frames are an ideal solution when installation space is at a premium.
The steel framework provides sufficient durability for environments such as risers or shafts. The design allows maximum access to the internal equipment through the back, top & base.
Features:
- Manufactured in the UK
- Ideal for installation sites where space is limited such as risers and shafts
- Standard finish goose grey (other colours on request)
- Easy access to internal equipment
- Inset acrylic as standard, mesh or steel optional
- Hinged door left or right with cam lock
- Vented sides
- Removable top & bottom gland plate
- Cable entry top & bottom
- Open rear area
- 4 x Wall mounting points
Dimensions By U Height
| U Height | Size (HxWxD) |
| 6U | 313x515x620 mm |
| 9U | 446x515x620 mm |
| 12U | 579x515x620 mm |
Data sheet
- Cable Entry
- Top & Bottom
- Colours
- Grey
- Construction
- Welded
- Depth
- 600mm
- Front Door Type
- Perspex Lockable/Removable
- Internal Working Depth
- 510mm
- Mounting Profiles
- 19" Fixed Front Only
- Side Panels
- Solid
- Width
- 515mm
