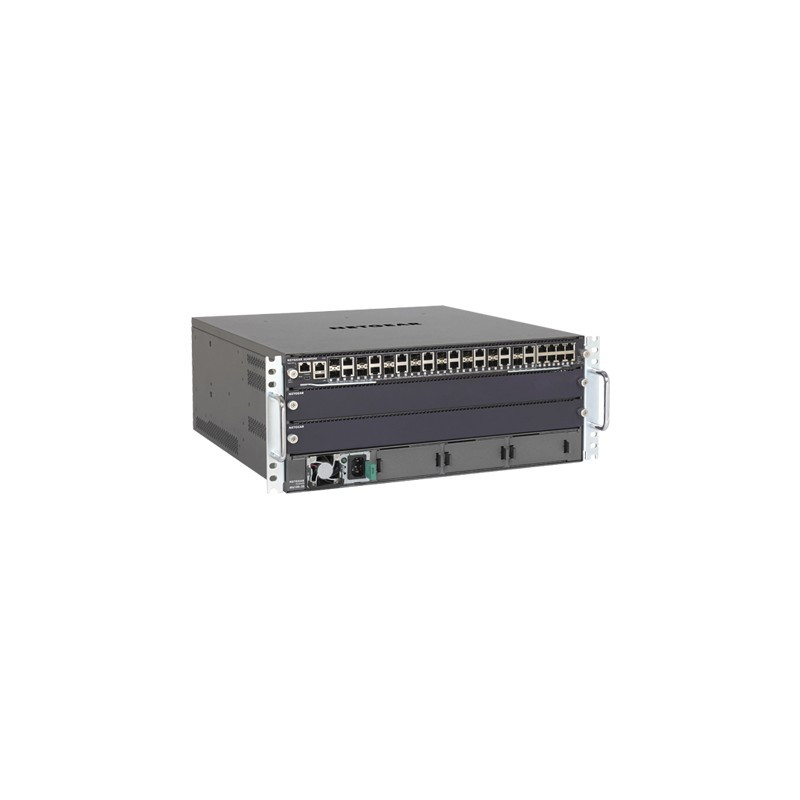

NETGEAR M6100-24X3
NETGEAR M6100-24X3, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 4U
Technical Headlines
M6100-24X3 Starter Kit bundle including M6100-3S base chassis, XCM8924X blade, AFT603 fan tray, APS1000W power supply
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.
The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
- Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management
- N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)
High speed performance
- 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput
- 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
- Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license
- Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
- Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
- Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
- Managed L3 Web-based management SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 32000 entries
- Access Control List (ACL)
- 4U Rack mounting Stackable
M6100-24X3 Starter Kit bundle including M6100-3S base chassis, XCM8924X blade, AFT603 fan tray, APS1000W power supply
M6100: The Latest Advances in Hardware and Software Engineering for Higher Flexibility, Lower Complexity and Stronger Investment Protection, at a High-Value Price Point.
The NETGEAR® Chassis M6100 series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB core deployments, as well as 1G / 10G mixed infrastructures in server rooms. Innovative distributed fabric provides non-stop forwarding resiliency and world-class availability - including passive backplane, hitless failover, redundant fabric and redundant management - without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors in this class.
World-class availability
- Dependable continuity of operations with non-stop switching, non-stop routing and hitless failover supported for both fabric and management
- N+1 redundancy for power supplies and loop-free, disruption-free multi-chassis link aggregation (MLAG)
High speed performance
- 1.4 Tbps total routing / switching capacity and up to 1,071 Mpps intra-blade throughput
- 480 Gbps distributed fabric inter-module with each slot providing 2 x 40G access to the passive backplane (80G half-duplex; 160G full-duplex)
Lower complexity
- Entire feature set including datacenter (DCBX, PFC, ETS, FIP Snooping) and advanced IPv6 L3 routing (OSPF, PBR, BGP) is available without license
- Innovative slot-1 supervisory and slot-2 backup supervisory design simplifies the entire chassis installation and ongoing maintenance tasks
Investment protection
- Multi-role versatile platform engineered for cost-effective Gigabit edge, flexible Gigabit / 10 Gigabit distribution and scalable 10 Gigabit core applications
- Any Gigabit copper blade can be upgraded with PoE+ 30W or UPOE 60W daughter card and downgraded later if the application has changed
Industry standard management
- Industry standard command line interface (CLI), functional NETGEAR web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and mass-configuration support
Industry leading warranty
- NETGEAR M6100 series is covered under NETGEAR ProSafe Lifetime Hardware Warranty*
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Data sheet
- 10G support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Certification
- CE
FCC Part 15 Class A
VCCI Class A
Class A EN 55022
(CISPR 22) Class A
Class A C-Tick
EN 50082-1
EN 55024 - Depth
- 441.6 mm
- Height
- 990mm
- Housing material
- Zinc steel
- MAC address table
- 96000 entries
- Management protocols
- ЫТЬЗ
- Maximum data transfer rate
- 96 Gbit/s
- Networking standards
- Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
- Non-operating altitude
- 9144 m
- Number of VLANs
- 8000
- Operating altitude
- 914.4 - 2133 m
- Operating temperature (T-T)
- 8 - 35 °C
- Safety
- Yes
- Security algorithms
- WPS,WPS-PBC,WPA,WPS-PIN,WPA2
- Storage temperature (T-T)
- 8 - 85 °C
- Supported network protocols
- WEP, WPA/WPA2-PSK
- Switch layer
- L7
- Width
- 993 mm
- Product colour
- White,Black
Specific References
- EAN13
- 5415247069676
