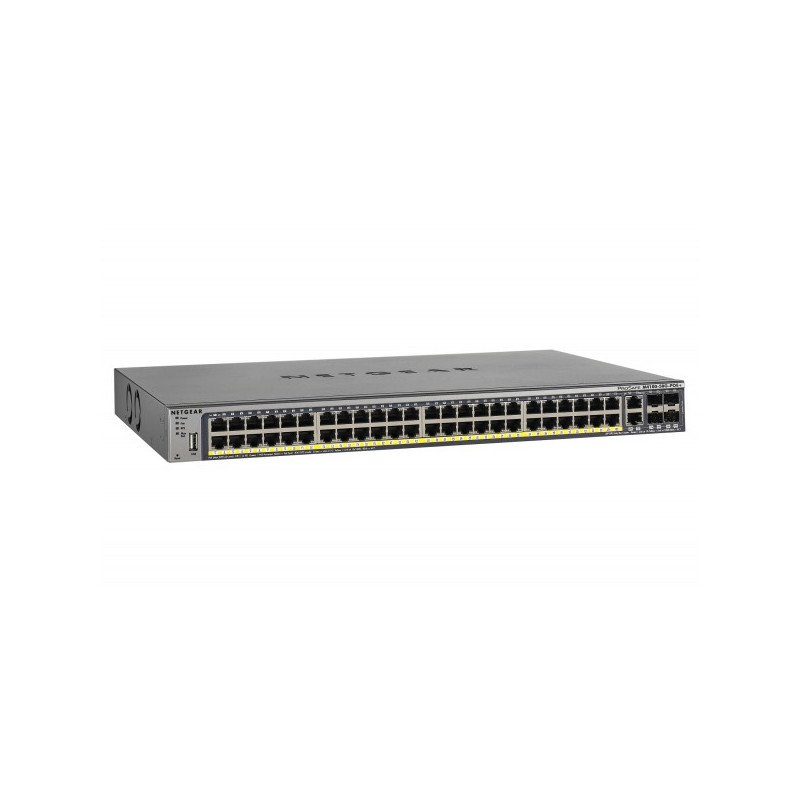

NETGEAR M4100-50G-POE+
NETGEAR M4100-50G-POE+, Managed, L2+/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Technical Headlines
- Fully managed switches with CLI and scripting
- From 8 ports Fast Ethernet to 50 ports Gigabit
- Static Layer 3 routing with 64 IP interfaces
- High-end PoE 802.3af and PoE+ 802.3at
- RPS and EPS options up to 1,440W budget
- Private VLANs, LLDP-MED and MVR
The NETGEAR® Intelligent Edge M4100 series consists of 12 fully managed switches, ranging from 8-port Fast Ethernet to 50-port Gigabit Ethernet.
They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.
As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.
Layer 2+ with static routing
- M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions
- L3 fixed routes to the next hop towards the destination network are added to the routing table
- L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)
Engineered for convergence
- Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol
- Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration
- Advanced classifier-based hardware for L2, L3, L4 security and prioritization
- Advanced Multicast filtering with IGMP and MLD snooping and querier modes
High-value performance and IPv6 ready
- 16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet
- IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)
High availability and PoE/PoE+ full power capability
- Redundant power supply option for uninterruptible operation (RPS)
- External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W)
Industry standard management
Industry standard command line interface (CLI)
Fully functional NETGEAR web interface (GUI)
Industry leading warranty
NETGEAR M4100 series is backed by NETGEAR ProSafe Lifetime Hardware Warranty
Also included ProSupport Lifetime 24x7 Advanced Technical Support
Also included 3-Year Next Business Day Onsite Hardware Replacement
- Managed L2+/L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 50 Console port: RS-232
- 10G support
- MAC address table: 16000 entries Switching capacity: 100 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
- Power over Ethernet (PoE)
- Fully managed switches with CLI and scripting
- From 8 ports Fast Ethernet to 50 ports Gigabit
- Static Layer 3 routing with 64 IP interfaces
- High-end PoE 802.3af and PoE+ 802.3at
- RPS and EPS options up to 1,440W budget
- Private VLANs, LLDP-MED and MVR
The NETGEAR® Intelligent Edge M4100 series consists of 12 fully managed switches, ranging from 8-port Fast Ethernet to 50-port Gigabit Ethernet.
They are ideal for all organizations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.
As a cost-effective component of converged voice, video and data networking solutions, NETGEAR M4100 series delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.
Layer 2+ with static routing
- M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions
- L3 fixed routes to the next hop towards the destination network are added to the routing table
- L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)
Engineered for convergence
- Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol
- Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration
- Advanced classifier-based hardware for L2, L3, L4 security and prioritization
- Advanced Multicast filtering with IGMP and MLD snooping and querier modes
High-value performance and IPv6 ready
- 16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet
- IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)
High availability and PoE/PoE+ full power capability
- Redundant power supply option for uninterruptible operation (RPS)
- External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W)
Industry standard management
Industry standard command line interface (CLI)
Fully functional NETGEAR web interface (GUI)
Industry leading warranty
NETGEAR M4100 series is backed by NETGEAR ProSafe Lifetime Hardware Warranty
Also included ProSupport Lifetime 24x7 Advanced Technical Support
Also included 3-Year Next Business Day Onsite Hardware Replacement
Data sheet
- 10G support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 50
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Certification
- - CE mark, commercial
- FCC Part 15 Class A, VCCI Class A
- Class A EN 55022 (CISPR 22) Class A
- Class A C-Tick
- EN 50082-1
- EN 55024 - Depth
- 310 mm
- Flash memory
- 96 MB
- Height
- 990mm
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- MAC address table
- 96000 entries
- Mean time between failures (MTBF)
- 9970080 h
- Networking standards
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Noise level
- 97.4 dB
- Non-operating altitude
- 9144 m
- Number of VLANs
- 8000
- Operating altitude
- 914.4 - 2133 m
- Operating temperature (T-T)
- 8 - 35 °C
- Power consumption (typical)
- 9W
- Safety
- Yes
- Storage temperature (T-T)
- 8 - 85 °C
- Switch layer
- L7
- Switching capacity
- 993.6 Gbps
- USB 2.0 ports quantity
- 7
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
- Width
- 993 mm
- Product colour
- White,Black
Specific References
- EAN13
- 0163120904679
NETGEAR M4100-50G-POE+, Managed, L2+/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
