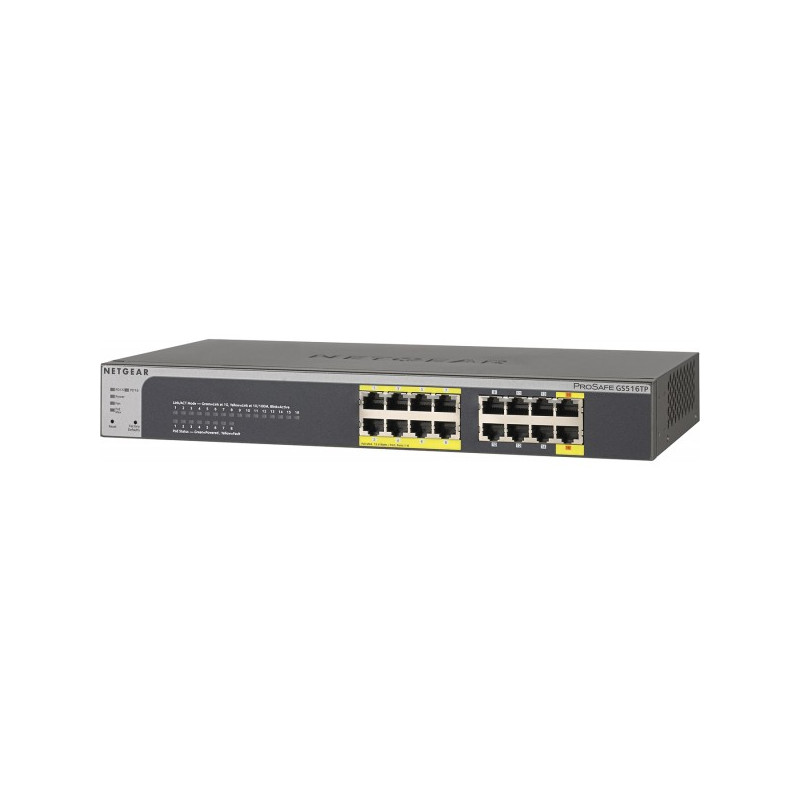

NETGEAR GS516TP

Technical Headlines

• Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 16
• MAC address table: 8000 entries
• Rack mounting
• Power over Ethernet (PoE)

Overview
The NETGEAR GS516TP Gigabit Smart Switch provides 16 twisted-pair ports that support
nonstop 10/100/1000M networks.
Using these gigabit slots, you can create high-speed connections to a server or network
backbone. For example, you can:
- Connect switches to each other with high-speed links
- Link to high-speed servers
- Provide 10/100/1000M copper connectivity

The switch also provides the benefit of administrative management with a complete package
of features for the observation, configuration, and control of the network. With a web-based
graphical user interface (GUI), the switch’s many capabilities can be viewed and used in a
simple and intuitive manner. The switch’s management features include:

- Configuration for port and switch information
- VLAN for traffic control
- Port trunking for increased bandwidth

Class of Service (CoS) for traffic prioritization
These features provide better understanding and control of the network. Initial discovery of
the switch on the network requires the Smart Control Center program, a utility that runs on a
computer.
The switch can be freestanding or rack mounted in a wiring closet or equipment room. It is
IEEE compliant and offers low latency for high-speed networking. All ports can automatically
negotiate to the highest speed. This capability makes the switch ideal for environments that
have a mix of Ethernet, Fast Ethernet, or Gigabit Ethernet devices. In addition, all RJ-45
ports operate in half-duplex or full-duplex mode. The maximum segment length is 328 feet
(100 meters) over Category 5 unshielded twisted-pair (UTP) cable.
