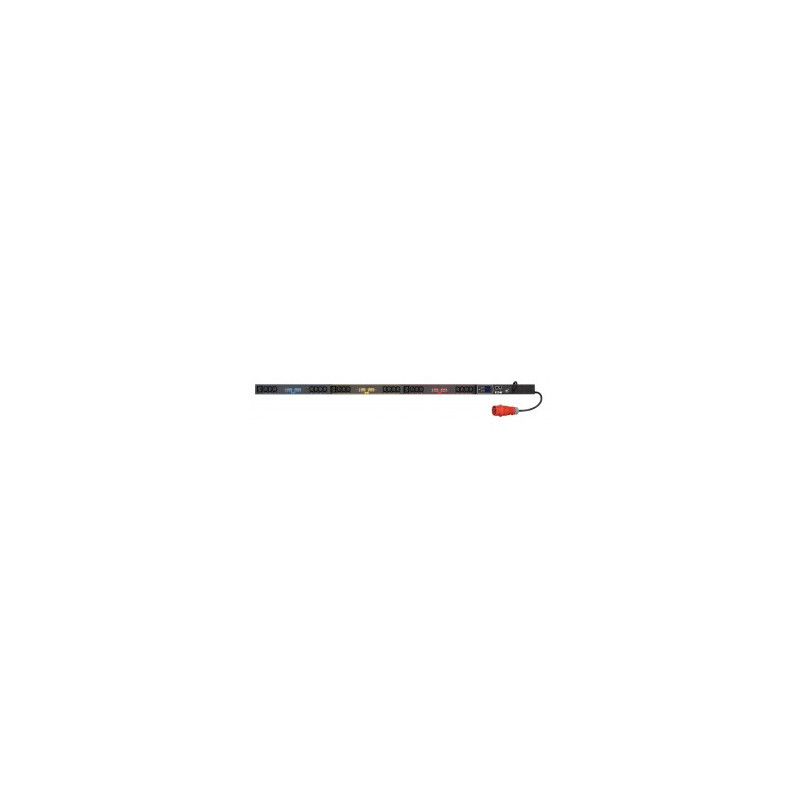

Eaton EMAA14
Managed, 0U, 3Ph, IEC309 (16A), 21 x C13 & 3 x C19
Two key trends have emerged in the data centre: the demand from today’s IT equipment for more power, and the increasing cost of that power. Couple these with the worldwide growth in demand for data
centres and IT servers, and it is clear that data centre managers are facing growing pressure to manage and optimise their available power for growth, at the same time as managing the increasing
associated costs.
To help them achieve this, they need an accurate view of the power and energy being consumed in the data centre – from row to rack, and right down to the individual server level. Only then can they truly
understand the power usage and optimise the available power.
centres and IT servers, and it is clear that data centre managers are facing growing pressure to manage and optimise their available power for growth, at the same time as managing the increasing
associated costs.
To help them achieve this, they need an accurate view of the power and energy being consumed in the data centre – from row to rack, and right down to the individual server level. Only then can they truly
understand the power usage and optimise the available power.
Data sheet
- AC outlet types
- C13 coupler,C19 coupler
- AC outlets quantity
- 24 AC outlet(s)
- Cable length
- 3 m
- Colour of product
- Black
- Dimensions (WxDxH)
- 55 x 1524 x 65 mm
- Display
- LCD
- Input connection type
- IEC 60309
- Input frequency
- 50 Hz
- Management platform
- SMTP
- Material
- Aluminium
- Maximum input current per phase
- 63 A
- Monitoring
- Current,Humidity,Temperature
- Mounting
- Yes
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 200-240 V
- Output connections
- 21 x C13 & 3 x C19
- PDU types
- Monitored,Switched
- Rack mounting
- 0U
- RoHS compliance
- Yes
- Serial ports quantity
- Standard HP UPS Management Module
- Source data-sheet
- Icecat.biz
- Weight
- 7010 g
Specific References
- EAN13
- 0743172036254
Managed, 0U, 3Ph, IEC309 (16A), 21 x C13 & 3 x C19
