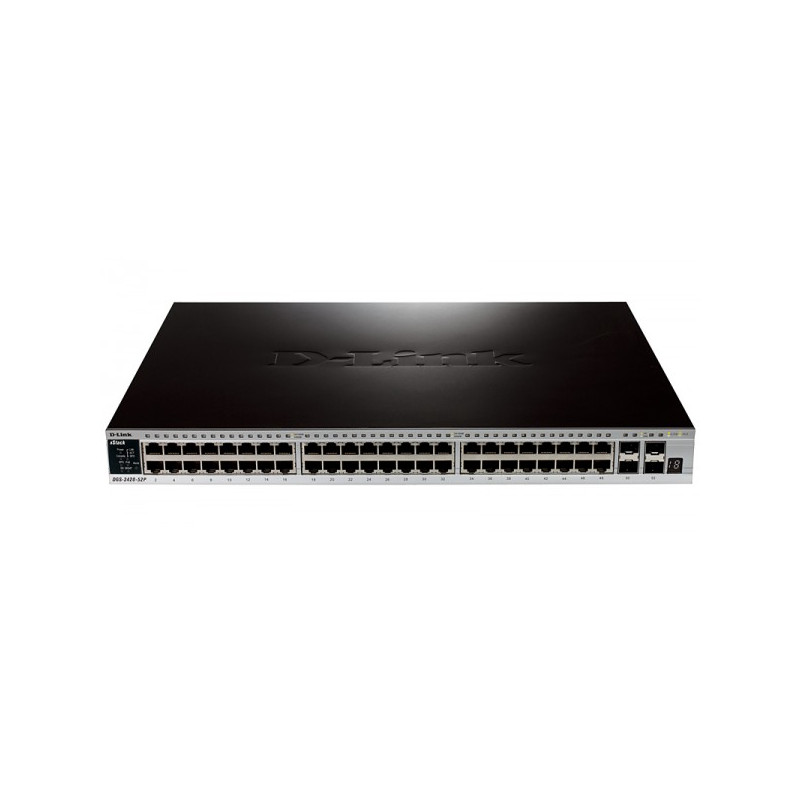

D-Link DGS-3420-52P
Data sheet
- 10GB Ports Qty
- 4
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Colour of product
- Black
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-T,10BASE-T
- Data transfer rate
- 1000 Mbit/s
- DHCP client
- Yes
- DHCP server
- Yes
- Dimensions (WxDxH)
- 441 x 310 x 44 mm
- Ethernet LAN (RJ-45) ports quantity
- 48
- Heat dissipation
- 1723.4 BTU/h
- MAC address table
- 96000 entries
- Management
- Layer 2 Managed
- Management platform
- CLI
- Management protocols
- ЫТЬЗ
- Maximum data transfer rate
- 96 Gbit/s
- Mean time between failures (MTBF)
- 202462 h
- Mounting
- Rackmount
- Networking features
- Yes
- Networking standards
- IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
- Noise level
- 54.8 dB
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating relative humidity range
- 10 - 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Packet transfer speed
- 130.95
- PoE
- Yes
- PoE Ports Qty
- 48
- Ports quantity
- 52
- Power consumption (typical)
- 505.4 W
- Power over Ethernet (PoE) support
- Yes
- Power supply type
- AC
- RJ45 Ports Qty
- 48
- Safety
- CB, cUL, LVD
- SFP Ports Qty
- 4
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage relative humidity range
- 5 - 90 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -40 - 70 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Supported network protocols
- WEP, WPA/WPA2-PSK
- Switch layer
- L7
- Switch Speed
- Gigabit
- Switching capacity
- 993.6 Gbps
- Weight
- 6240 g
Specific References
- EAN13
- 0790069361715
