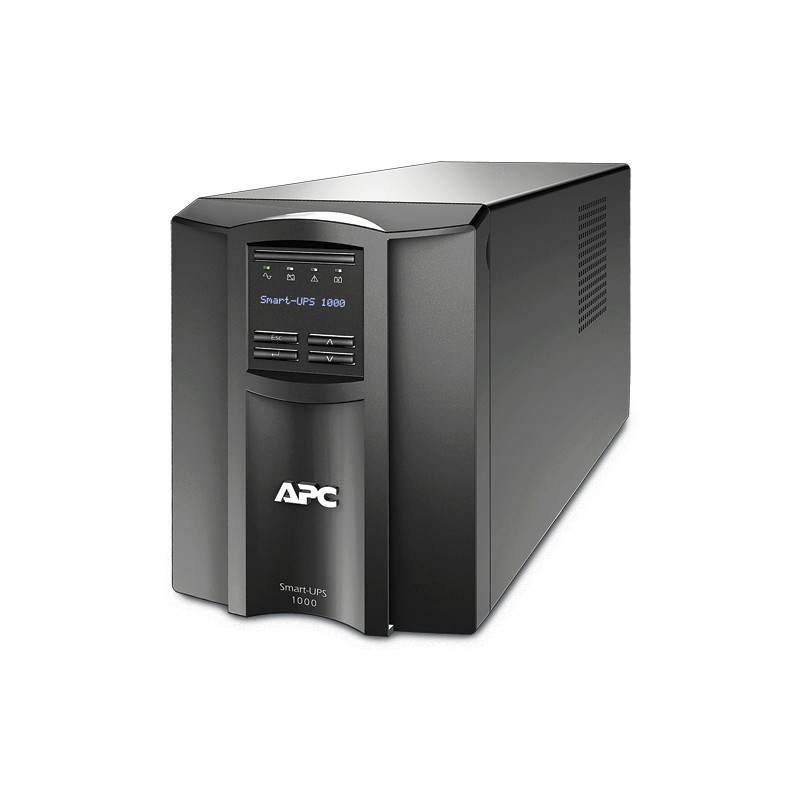

APC Smart-UPS
700W, 1000 VA, 230V, 1 x C14 In, 8 x C13, 2 x IEC Jumpers Out
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the
UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Provides clear and accurate information in multiple languages with the ability to configure the
UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 8
- Battery recharge time
- 3 h
- Battery technology
- Sealed Lead Acid (VRLA)
- Certification
- C-tick, CE, EN 50091-1, EN 50091-2, VDE
- Colour of product
- Black
- Depth
- 439 mm
- Display
- LCD
- Efficiency
- 98.3 %
- Height
- 219 mm
- Input operation voltage (max)
- 600 V
- Input operation voltage (min)
- 96 V
- Noise level
- 41 dB
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Output power capacity (VA)
- 1000 VA
- Output voltage THD
- 5 %
- Package weight
- 22770 g
- Power plug
- Type G (BS 1363)
- Power protection features
- Under voltage
- Power supply input frequency
- 47/63 Hz
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Surge energy rating
- 990 J
- Typical backup time at full load
- 90 min
- Typical backup time at half load
- 19 min
- Waveform
- Square
- Weight
- 18860 g
- Width
- 993 mm
Specific References
- EAN13
- 8592978047870
700W, 1000 VA, 230V, 1 x C14 In, 8 x C13, 2 x IEC Jumpers Out
