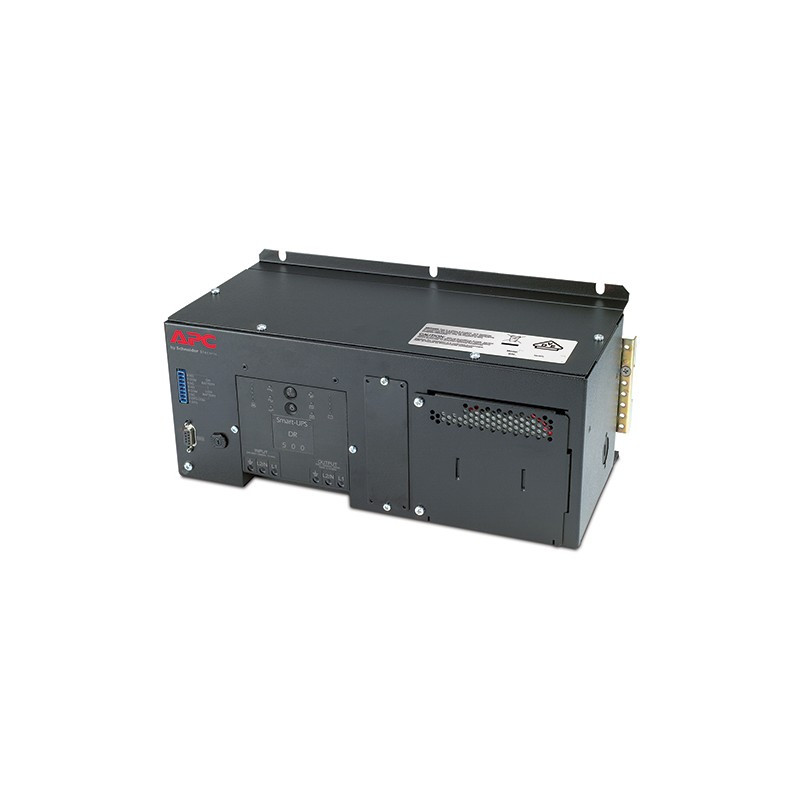

APC SUA500PDRI-S
DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V
APC Industrial, 325 Watts /500 VA, Input 230V /Output 230V, Interface Port DB-9 RS-232, SmartSlot.
Data sheet
- Battery technology
- Sealed Lead Acid (VRLA)
- Certification
- CE, VDE
- Colour of product
- Black
- Efficiency
- 94 %
- Input operation voltage (max)
- 600 V
- Input operation voltage (min)
- 96 V
- Noise level
- 97.4 dB
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Output operation voltage (min)
- 97 V
- Output power
- 325 W
- Output power capacity (VA)
- 500 VA
- Output voltage THD
- 5 %
- Package dimensions (WxDxH)
- 297 x 481 x 297 mm
- Package weight
- 13320 g
- Power supply input frequency
- 50/60 Hz
- RoHS compliance
- Yes
- RS-232 ports
- 2
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Surge energy rating
- 990 J
- Width
- 362 mm
Specific References
- EAN13
- 0731304290841
