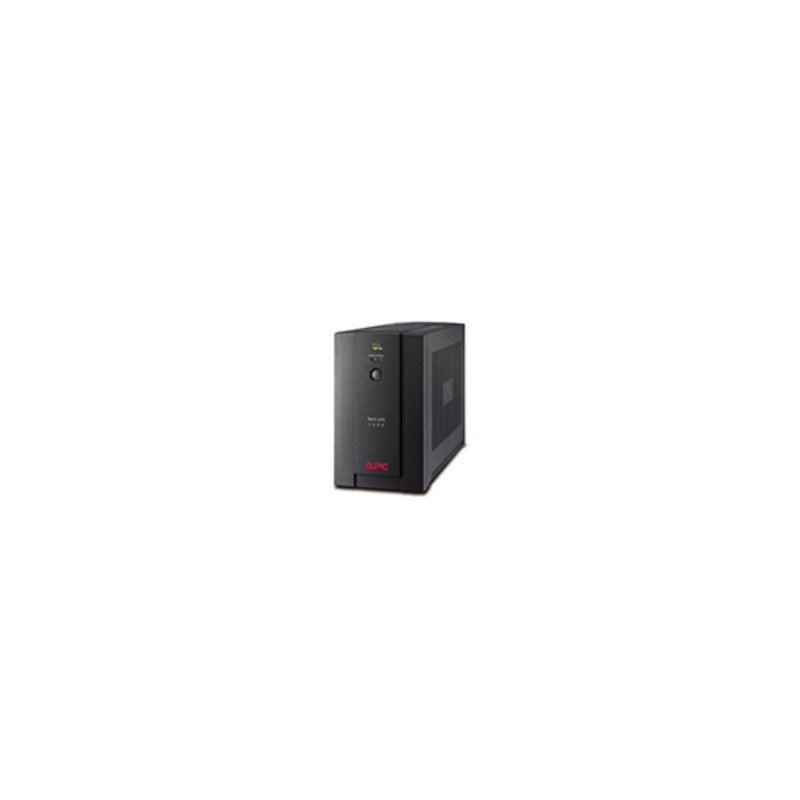

APC BX950UI uninterruptible power supply (UPS)
APC BX950UI, 950 VA, 480W, 150V, C13 coupler, C14 coupler, 1.22m
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Telephone dataline surge protection
Provides protection of connected equipment from power
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Telephone dataline surge protection
Provides protection of connected equipment from power
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 6
- Battery capacity
- 9.0 Ah
- Battery recharge time
- 8h
- Battery technology
- Sealed Lead Acid (VRLA)
- Bundled software
- PowerChute
- Cable length
- 1.22m
- Certification
- A-tick, C-tick, CE, IEC 62040-1-1, RCM, TelePermit
REACH - Colour of product
- Black
- Depth
- 33.6 cm
- Efficiency
- 96.6%
- Height
- 21.5 cm
- Input operation voltage (max)
- 280V
- Input operation voltage (min)
- 150V
- Maximum current
- 4A
- Nominal input voltage
- 230V
- Non-operating altitude
- 0 - 9000m
- Operating altitude
- 0 - 3000m
- Operating temperature (T-T)
- 8 - 35 °C
- Output power
- 480W
- Output power capacity (VA)
- 950 VA
- Package height
- 29.5 cm
- Package width
- 24.5 cm
- Power plug
- Type G (BS 1363)
- Power supply input frequency
- 47/63 Hz
- Replacement battery cartridge
- RBC17
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Surge energy rating
- 273J
- Surge protection features
- Fax, Modem
- Typical backup time at full load
- 1.3 min
- Typical backup time at half load
- 7.5 min
- Waveform
- Square
- Weight
- 8 kg
- Width
- 13 cm
Specific References
- EAN13
- 0731304316008
APC BX950UI, 950 VA, 480W, 150V, C13 coupler, C14 coupler, 1.22m
