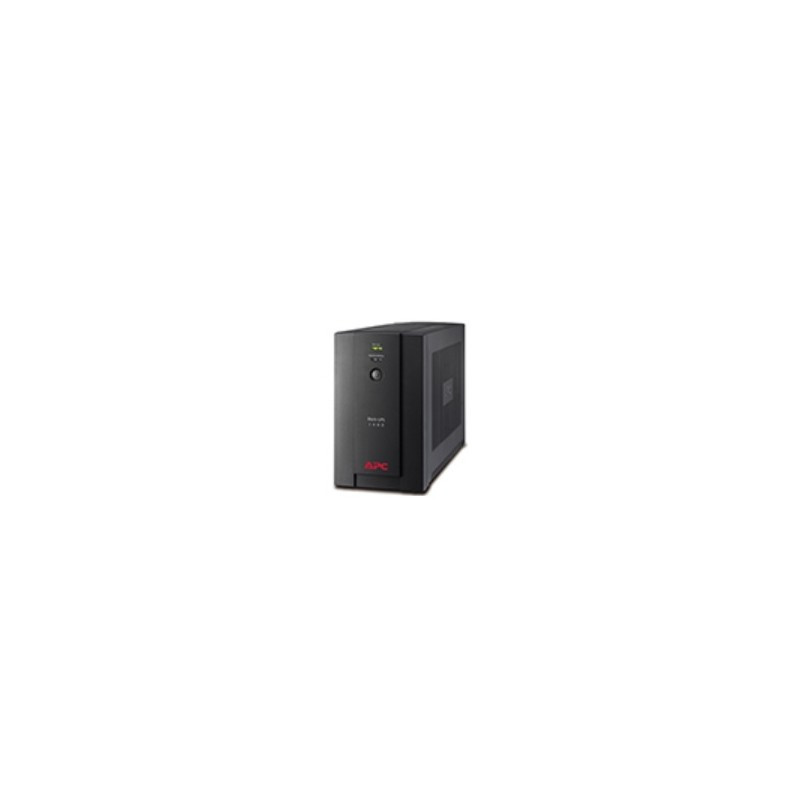

APC Back-UPS
Line Interactive, 700W, 230V, 1 x IEC-320 C14 In, 6 x IEC 320 C13 Out
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Telephone dataline surge protection
Provides protection of connected equipment from power surges traveling on telephone lines.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Telephone dataline surge protection
Provides protection of connected equipment from power surges traveling on telephone lines.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 6
- Battery capacity
- 7.2 Ah
- Battery technology
- Sealed Lead Acid (VRLA)
- Cable length
- 1.22m
- Certification
- A-tick, C-tick, CE, IEC 62040-1-1, TelePermit
- Colour of product
- Black
- Depth
- 33.6 cm
- Display
- LED
- Efficiency
- 96.7%
- Height
- 21.5 cm
- Input operation voltage (max)
- 280V
- Input operation voltage (min)
- 150V
- Maximum current
- 6A
- Noise level
- 45.0 dB
- Nominal input voltage
- 230V
- Non-operating altitude
- 0 - 9000m
- Operating altitude
- 0 - 3000m
- Operating temperature (T-T)
- 8 - 35 °C
- Output power
- 700W
- Output power capacity (VA)
- 1400 VA
- Package height
- 29.5 cm
- Package weight
- 12.94 kg
- Package width
- 24.5 cm
- Power plug
- Type G (BS 1363)
- Power supply input frequency
- 47/63 Hz
- Replacement battery cartridge
- APCRBC113
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -15 - 40 °C
- Surge energy rating
- 273J
- Typical backup time at full load
- 2.4 min
- Typical backup time at half load
- 11.2 min
- Waveform
- Square
- Weight
- VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb)
- Width
- 13 cm
Specific References
- EAN13
- 0731304315957
