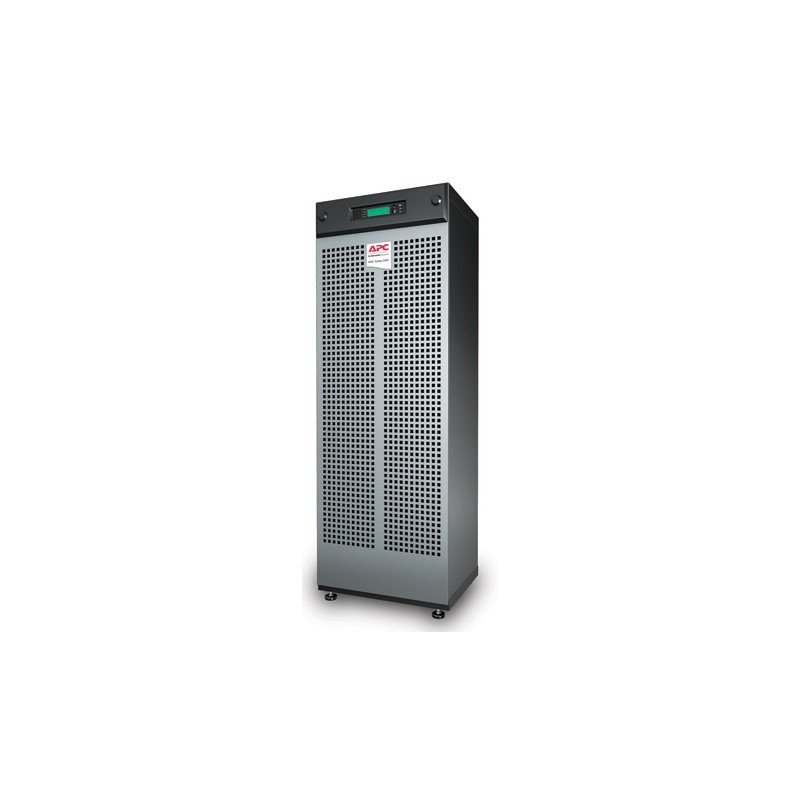

APC MGE Galaxy 3500 20kVA 400V

APC MGE Galaxy 3500 20kVA 400V

APC MGE Galaxy 3500 20kVA 400V, 20000 VA, 16000W, 40/70 Hz, Sealed Lead Acid (VRLA), VRLA, 5h
Out of Stock
Reference: G35T20KH3B4S

Require Project Pricing?

Click here to email your parts list and we will send you a quote
APC MGE Galaxy 3500, 16 kW / 20 kVA,Input 400V 3PH / Output 400V 3PH, Extended runtime model.

Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship instal

Data sheet

Battery recharge time
5h
Battery technology
Sealed Lead Acid (VRLA)
Battery type
VRLA
Certification
CE, EN 50091-2, EN/IEC 62040-3, EN/IEC 62040-1-1, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-111
Colour of product
Black
Dimensions (WxDxH)
523 x 838 x 1491 mm
Input connection type
5-wire (3PH + N + G)
Maximum current
27A
Nominal output voltage
400V
Non-operating altitude
0 - 15000m
Operating altitude
0 - 999.9m
Operating temperature (T-T)
8 - 35 °C
Output connections
1 x 4-wire (3PH + G)
1 x 5-wire (3PH + N + G)
1 x Screw Terminals
Output power
16000W
Output power capacity (VA)
20000 VA
Output voltage note
+/-1%, +/- 5%
Package dimensions (WxDxH)
650 x 1062 x 1643 mm
Package weight
565 kg
Power supply input frequency
40/70 Hz
Source data-sheet
Icecat.biz
Storage temperature (T-T)
8 - 85 °C
Weight
535 kg

Specific References

EAN13
0731304274957
