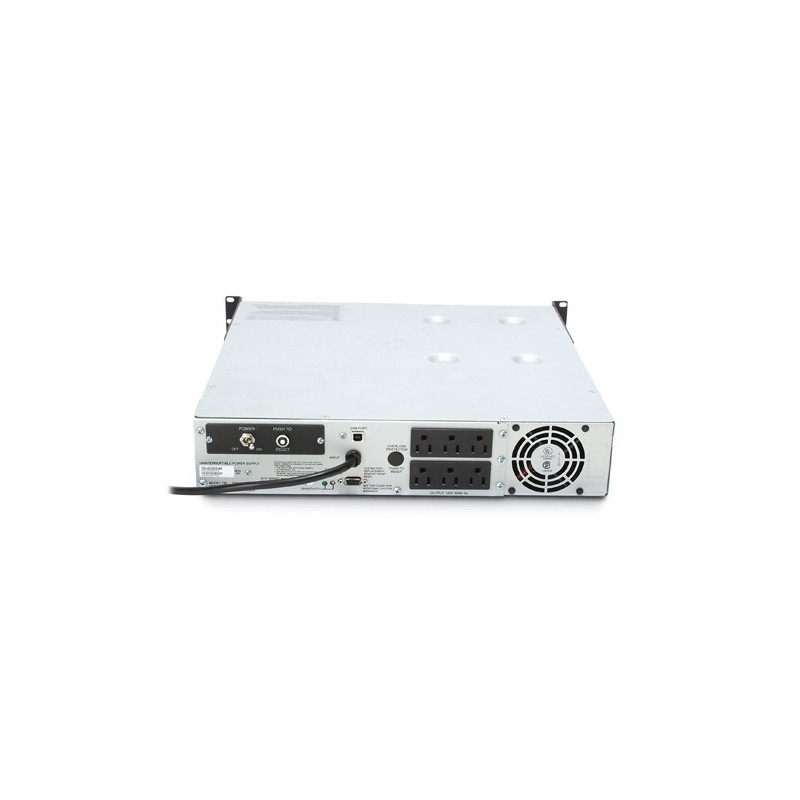

APC Smart -UPS 1500VA, 2U
APC Smart -UPS 1500VA RM 2U 120V SHIPBOARD CD with software, Installation guide, Smart UPS signalling RS-232 cable
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatically starts up the connected equipment upon the return of utility power.
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Quickly understand unit and power status with visual indicators.
- Warns when a battery is not available to provide backup power.
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Automatically starts up the connected equipment upon the return of utility power.
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Quickly understand unit and power status with visual indicators.
- Warns when a battery is not available to provide backup power.
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Data sheet
- Cable length
- 2.44m
- Colour of product
- Black
- Dimensions (WxDxH)
- 483 x 457 x 89 mm
- Input connection type
- NEMA 5-15R
- Interface
- DB-9 RS-232
- Nominal input voltage
- 120V
- Nominal output voltage
- 120V
- Operating temperature range (T-T)
- 0 - 40 °C
- Output power
- 980W
- Package dimensions (WxDxH)
- 594 x 603 x 251 mm
- Package weight
- 31.91 kg
- Power supply input frequency
- 60 Hz
- Replacement battery cartridge
- RBC24
- Source data-sheet
- Icecat.biz
- Storage temperature range (T-T)
- -15 - 45 °C
- Surge energy rating
- 459J
- Typical backup time at full load
- 7.4 min
- Typical backup time at half load
- 26.5 min
- Weight
- 28.64 kg
Specific References
- EAN13
- 0731304213017
APC Smart -UPS 1500VA RM 2U 120V SHIPBOARD CD with software, Installation guide, Smart UPS signalling RS-232 cable
