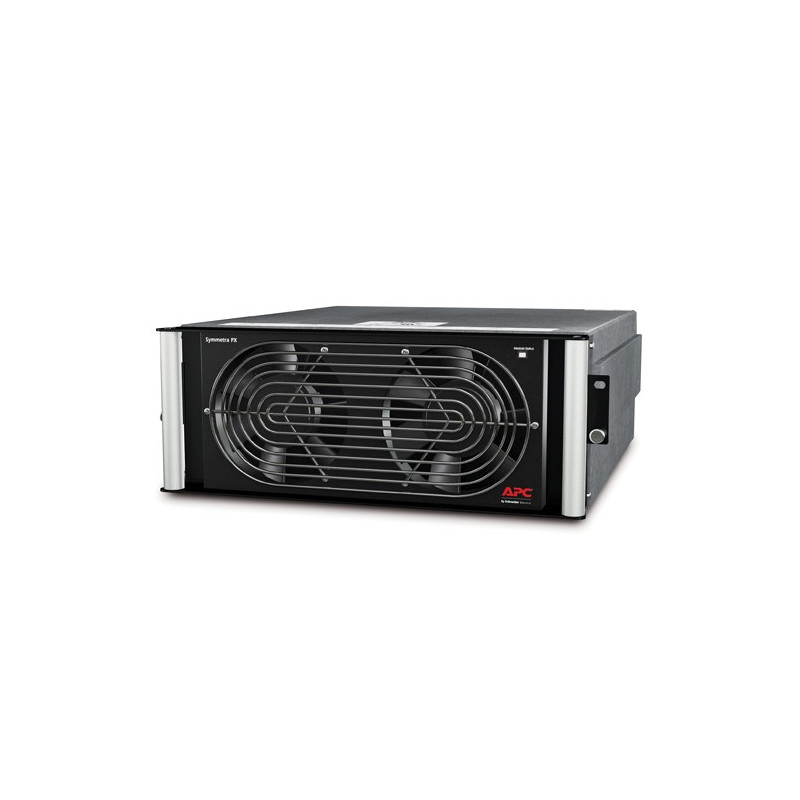

APC Symmetra PX 25kW

APC Symmetra PX 25kW

Symmetra PX 25kW Power Module, 400/480V
Out of Stock
Reference: SYPM25KD

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.



Fully-rated power kVA equals kW

Reduces cost by eliminating the need for an oversized UPS for Power Factor Corrected (PFC) loads.

Data sheet

Certification
cUL Listed,CE,UL Listed,VDE
RoHS 7b Exemption
Colour of product
Black
Dimensions (WxDxH)
452 x 705 x 173 mm
Input connection type
Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
Operating temperature range (T-T)
0 - 40 °C
Output connections
2x Anderson
Output power
25000W
Output power capacity (VA)
25000 VA
Package dimensions (WxDxH)
585 x 935 x 185 mm
Package weight
48.18 kg
Power supply input frequency
40/70 Hz
Source data-sheet
Icecat.biz
Storage temperature range (T-T)
-15 - 40 °C
Weight
43.18 kg

Specific References

EAN13
0731304248071
