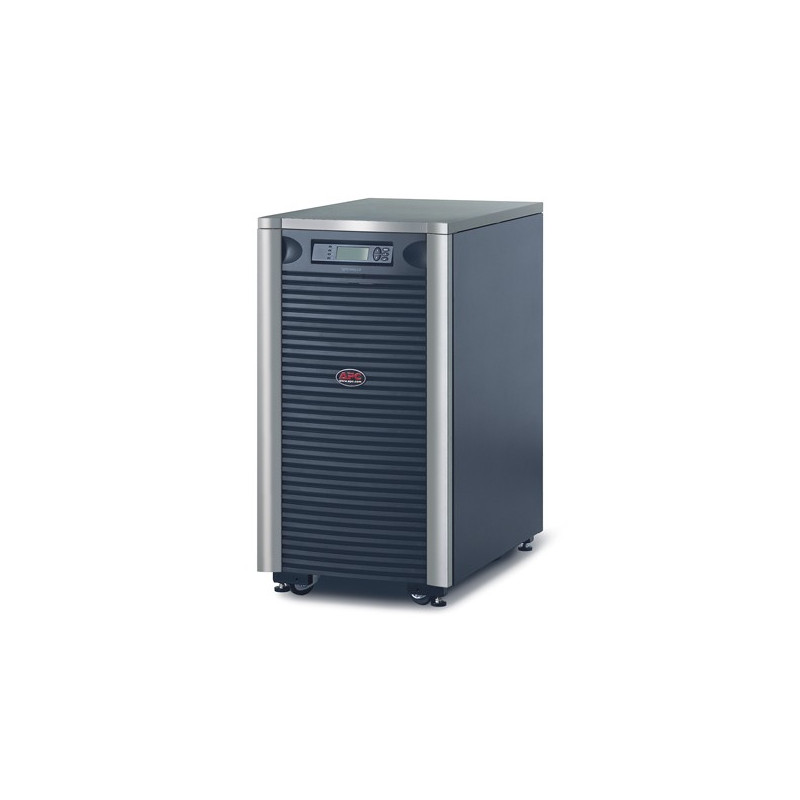

APC Symmetra LX 16kVA
Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 380/400/415V
APC Symmetra LX, 11.2 kW / 16 kVA,Input 230V, 400V 3PH / Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model.
Includes: CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card.
Includes: CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card.
Data sheet
- Battery recharge time
- 3 h
- Battery technology
- Sealed Lead Acid (VRLA)
- Certification
- C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 A,EN 55024,EN 60950,GOST,IEC 60950,VDE
- Dimensions (WxDxH)
- 483 x 726 x 937 mm
- Input connection type
- (1PH+N+G)/(3PH + N + G)
- Interface
- DB-9, RS-232
- Nominal output voltage
- 400V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity range
- 0 - 95 %
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- 1xHard Wire 3-wire (H N + G)
- Output power
- 11200 W
- Output power capacity (VA)
- 16000 VA
- Output voltage note
- 220-230/240 V
- Package dimensions (WxDxH)
- 599 x 997 x 1181 mm
- Package weight
- 337.73 kg
- Replacement battery cartridge
- SYBT5
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 0 - 95 %
- Storage temperature range (T-T)
- -15 - 45 °C
- Typical backup time at full load
- 7.5 min
- Typical backup time at half load
- 20.3 min
- Weight
- 307.73 kg
Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 380/400/415V
