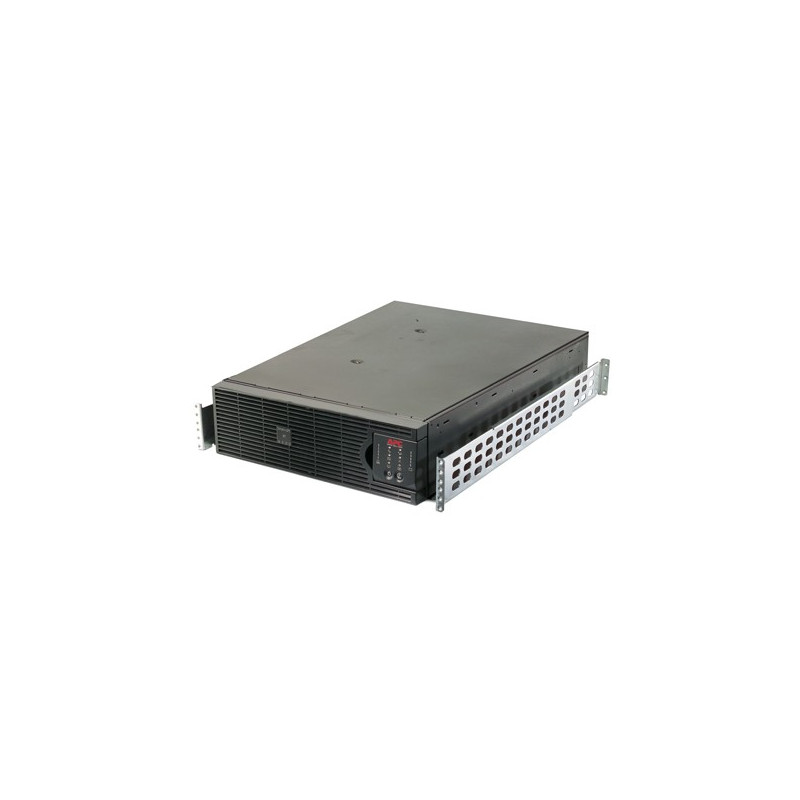

APC Smart-UPS RT 3000VA Rack Tower 120V
Smart-UPS On-Line, 2100 Watts / 3000 VA,Input 120V / Output 120V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model, Rack Height 3U
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Data sheet
- Battery recharge time
- 2.50 h
- Cable length
- 2.44 m
- Certification
- CSA,FCC Part 15 Class A,UL 1778, RoHS 7b
- Colour of product
- Black
- Dimensions (WxDxH)
- 432 x 660 x 130 mm
- Input connection type
- NEMA L5-30P
- Interface
- DB-9 RS-232, Smart-Slot
- Noise level
- 97.4 dB
- Nominal input voltage
- 120 V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- 6x NEMA 5-15R
2x NEMA 5-20R - Output power
- DC 9V
- Output power capacity (VA)
- 3000 VA
- Power supply input frequency
- 50/60 Hz
- Source data-sheet
- Icecat.biz
- Storage temperature range (T-T)
- -15 - 45 °C
- Typical backup time at full load
- 14.1 min
- Typical backup time at half load
- 33.9 min
- Weight
- 54.55 kg
Specific References
- EAN13
- 0731304259169
Smart-UPS On-Line, 2100 Watts / 3000 VA,Input 120V / Output 120V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model, Rack Height 3U
