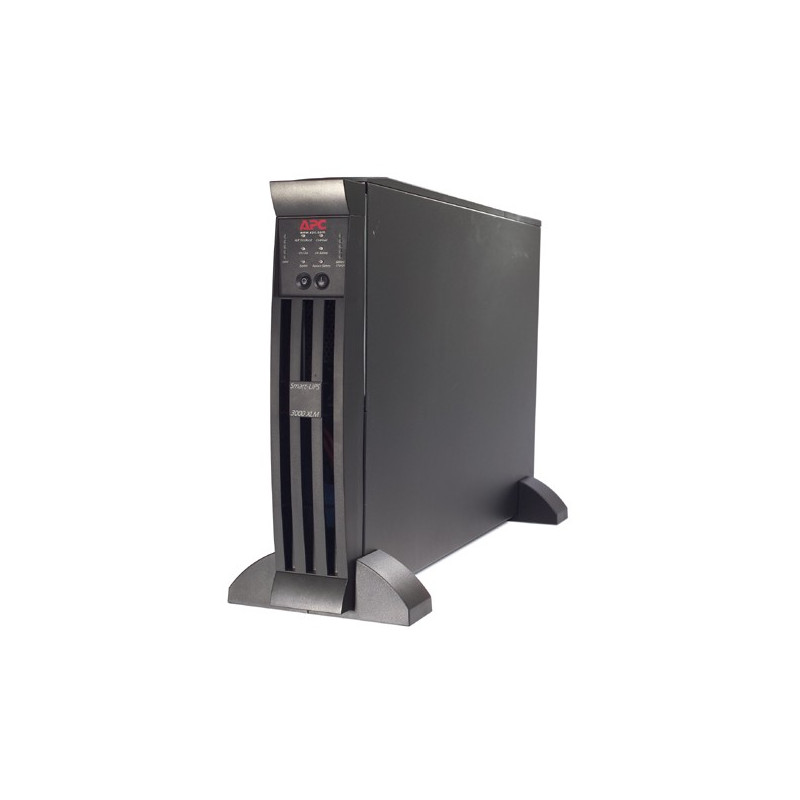

APC Smart-UPS XL Modular 3000VA 120V Rackmount/Tower
APC Smart-UPS XL Modular 3000VA 120V Rackmount/Tower CD with software, Installation guide, Rack Mounting brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable
Smart-UPS Features & Benefits
- Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
- Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Automatically starts up the connected equipment upon the return of utility power.
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
- Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
- Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Automatically starts up the connected equipment upon the return of utility power.
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Data sheet
- Battery recharge time
- 3 h
- Cable length
- 3.05 m
- Colour of product
- Black
- Dimensions (WxDxH)
- 432 x 678 x 86 mm
- Input connection type
- NEMA 5-15R/NEMA 5-20R
- Interface
- DB-9 RS-232/RJ-45 10/100 Base-T
- Mac compatibility
- No
- Nominal input voltage
- 120 V
- Operating relative humidity range
- 0 - 95 %
- Operating temperature range (T-T)
- 0 - 40 °C
- Output power
- 2850 W
- Output power capacity (VA)
- 3000 VA
- Package dimensions (WxDxH)
- 596 x 980 x 250 mm
- Package weight
- 56.82 kg
- Power supply input frequency
- 60 Hz
- Replacement battery cartridge
- RBC43
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 0 - 95 %
- Storage temperature range (T-T)
- -5 - 55 °C
- Surge energy rating
- 990 J
- Typical backup time at full load
- 3.5 min
- Typical backup time at half load
- 11.9 min
- Weight
- 46.82 kg
Specific References
- EAN13
- 0731304224563
APC Smart-UPS XL Modular 3000VA 120V Rackmount/Tower CD with software, Installation guide, Rack Mounting brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable
