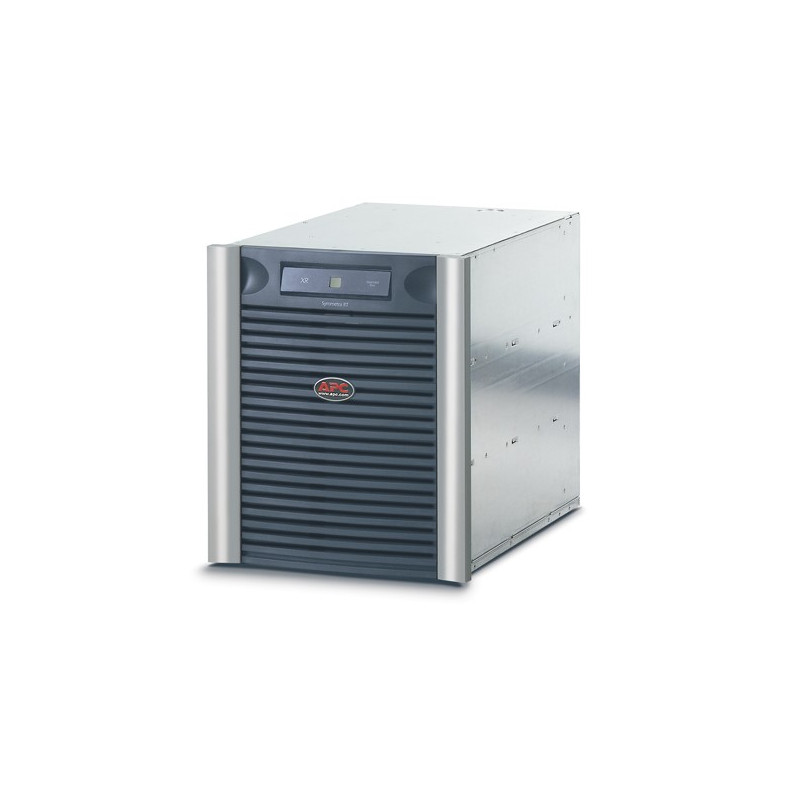

APC Symmetra LX 9 Battery
APC Symmetra LX 9 Battery Rack-Mount XR FRAME, 230V, with Enclosed battery cabinet,.
Modular design
- Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
Hot-swappable batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Battery modules connected in parallel
- Delivers higher availability through redundant batteries.
User-replaceable batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Plug-and-Play external batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.
Hot-swappable batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Battery modules connected in parallel
- Delivers higher availability through redundant batteries.
User-replaceable batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Plug-and-Play external batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Data sheet
- Battery technology
- Sealed Lead Acid (VRLA)
- Certification
- BSMI/EN 50091-1/EN 50091-2/EN 60950/IEC 60950/VCCI/VDE
- Colour of product
- Black
- Dimensions (WxDxH)
- 483 x 726 x 602 mm
- Operating relative humidity range
- 0 - 95 %
- Operating temperature range (T-T)
- 0 - 40 °C
- Output power
- 5600 W
- Output power capacity (VA)
- 8000 VA
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 0 - 95 %
- Storage temperature range (T-T)
- -15 - 45 °C
- Weight
- 50910 g
Specific References
- EAN13
- 0731304221746
APC Symmetra LX 9 Battery Rack-Mount XR FRAME, 230V, with Enclosed battery cabinet,.
