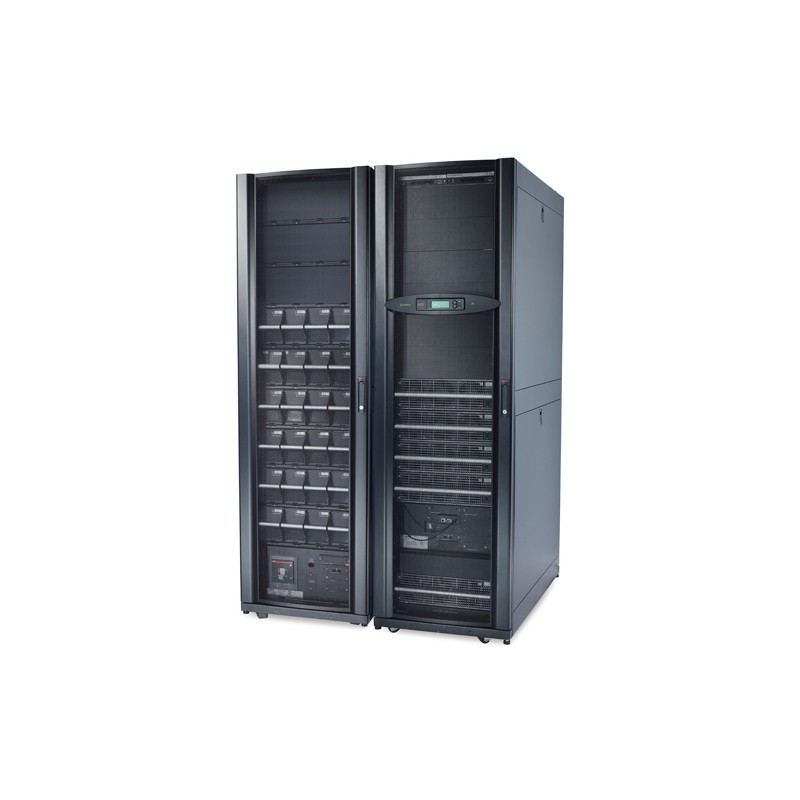

APC Symmetra PX 64kW Scalable to 160kW 400V

APC Symmetra PX 64kW Scalable to 160kW, 400V

Symmetra PX 64kW Scalable to 160kW, 400V
Out of Stock
Reference: SY64K160H

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160kW/160kVA. Suitable for small, medium & large data center applications.



Includes: Network Management Card, Start-Up Service, User Manual.

Data sheet

Battery type
VRLA
Certification
EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111
Colour of product
Black
Dimensions (WxDxH)
1200 x 1070 x 1991 mm
Interface
2x SmartSlot
Nominal input voltage
400, 340 - 477 V
Nominal output voltage
230 - 400 V
Non-operating altitude
9144 m
Operating altitude
0 - 999.9 m
Operating relative humidity range
0 - 95 %
Operating temperature range (T-T)
0 - 40 °C
Output connections
1x Hard Wire 5-wire (3PH + N + G)
Output power capacity (VA)
64000 VA
Output voltage note
380, 400/415
Package dimensions (WxDxH)
1696 x 1210 x 2140 mm
Package weight
1511000 g
Power supply input frequency
40 - 70 Hz
Rack mounting
42u
Source data-sheet
Icecat.biz
Storage relative humidity range
0 - 95 %
Storage temperature range (T-T)
-15 - 40 °C
Weight
1388000 g
