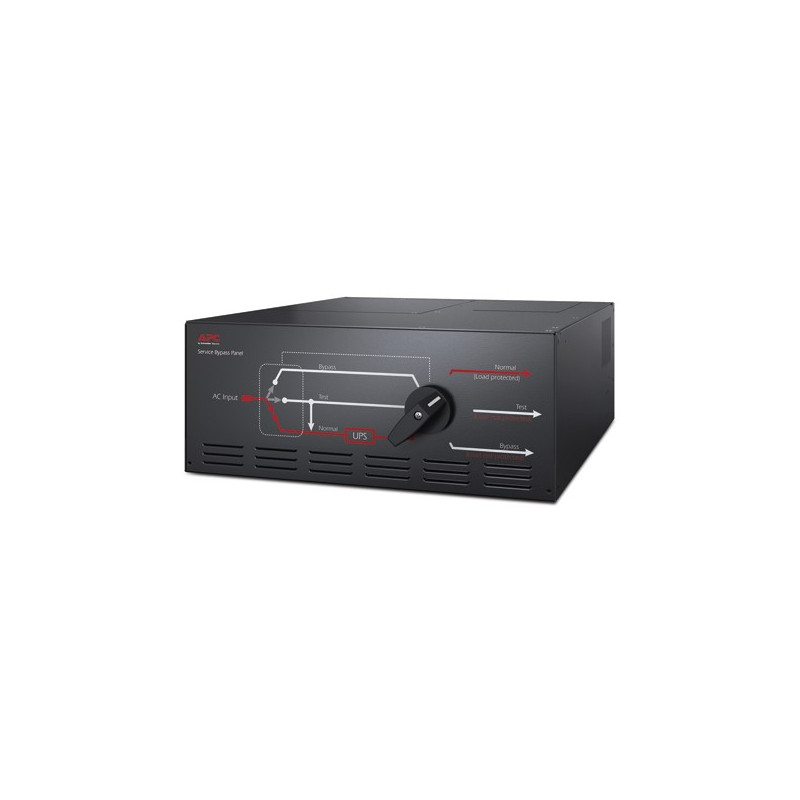

APC SBP20KP
Service Bypass Panel, 400V (3PH + N + G), 19.32 kg, Black
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
(3) Breaker maintenance bypass panel to isolate the UPS from the critical loa.
- APC Smart-UPS Accessories , Input: 200V, 208V, 220V, 230V, 240V, 380V 3PH, 400V 3PH
- Input Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Output: 200V, 208V, 220V, 230V, 240V
- Output Connections: Hard Wire 3-wire (2PH + G), Hard Wire 3-wire (H N + G)
Data sheet
- Colour of product
- Black
- Depth
- 554 mm
- Input operation voltage (max)
- 240 V
- Input operation voltage (min)
- 200 V
- Maximum current
- 125 A
- Non-operating altitude
- 9144 m
- Operating altitude
- 0 - 4500 m
- Operating relative humidity range
- 0 - 95 %
- Operating temperature range (T-T)
- -20 - 50 °C
- Output power capacity (VA)
- 20000 VA
- Package dimensions (WxDxH)
- 610 x 845 x 305 mm
- Package weight
- 31360 g
- Power supply input frequency
- 50/60 Hz
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 0 - 95 %
- Storage temperature range (T-T)
- -40 - 65 °C
- Weight
- 19320 g
- Width
- 993 mm
Specific References
- EAN13
- 0731304266952
Service Bypass Panel, 400V (3PH + N + G), 19.32 kg, Black
