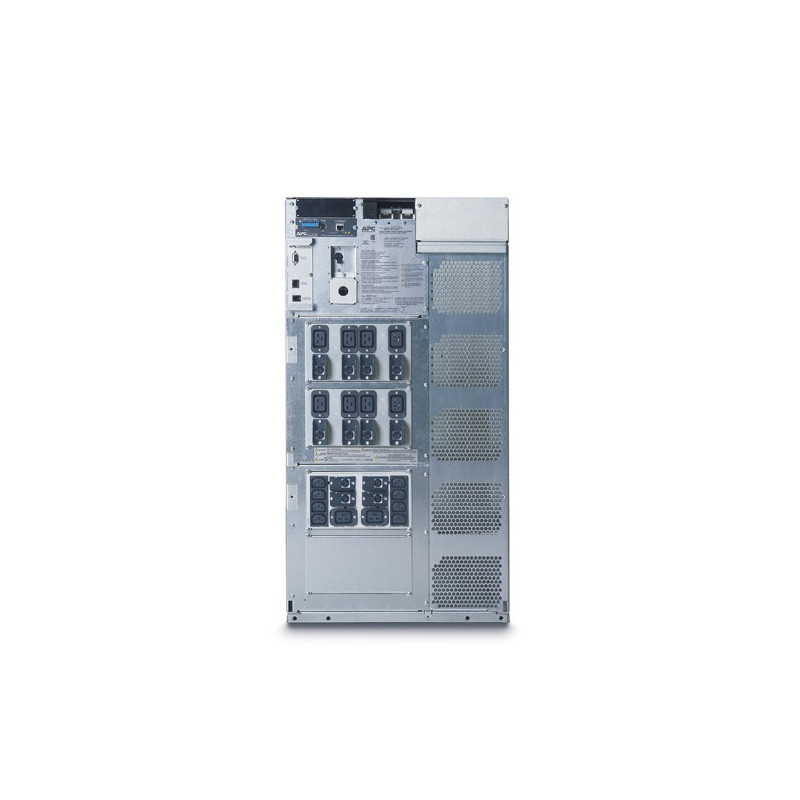

APC Symmetra LX 16KVA on-line
APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mount 220 230 240V or 380 400 415V
Industry’s most space-optimized modular UPS solutions
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Data sheet
- Battery type
- Lead-Acid
- Colour of product
- Black, Silver
- Compatibility
- C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE
- Dimensions (WxDxH)
- 472 x 688 x 838 mm
- I/O ports
- (1) Hard Wire 3-wire (H N + G)
(8) IEC 320 C13
(10) IEC 320 C19
Hard Wire 3 wire (1PH+N+G)
Hard Wire 5-wire (3PH + N + G)
- Input connection type
- Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
- Interface
- DB-9 RS-232, Smart-Slot
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 16000 V
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating relative humidity range
- 0 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- (1) Hard Wire 3-wire (H N + G)
(8) IEC 320 C13
(10) IEC 320 C19
- Output power
- 11200 W
- Output power capacity (VA)
- 16000 VA
- Output voltage note
- 220: 230, 240
- Package dimensions (WxDxH)
- 599 x 997 x 1054 mm
- Package weight
- 340450 g
- Power supply input frequency
- 45 - 65 Hz
- Replacement battery cartridge
- SYBT5
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage relative humidity range
- 0 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -15 - 45 °C
- Typical backup time at full load
- 7.5 min
- Typical backup time at half load
- 20.3 min
- Weight
- 286820 g
Specific References
- EAN13
- 8431775015654
