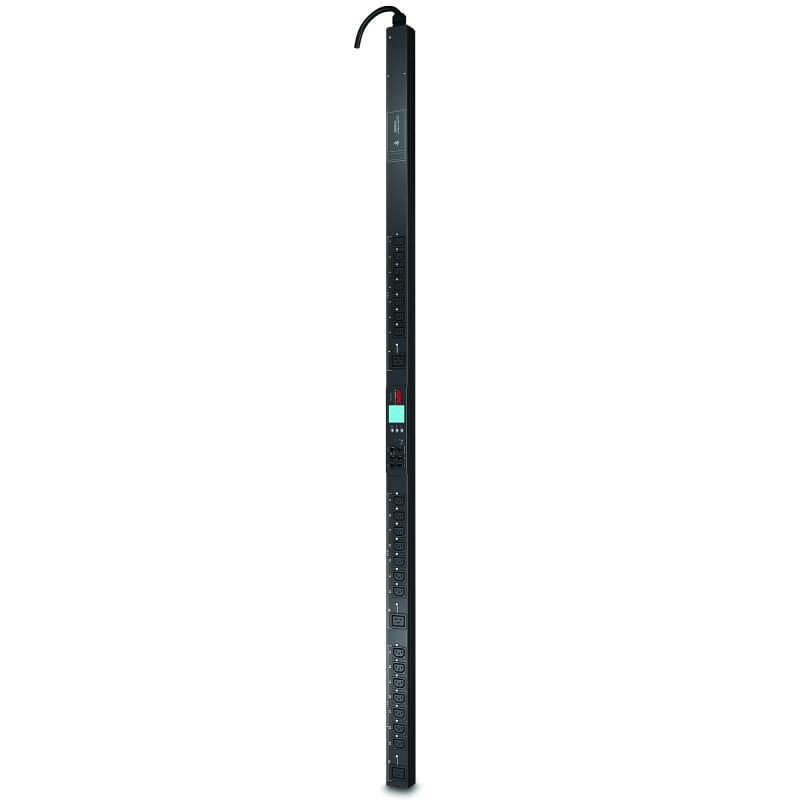

APC AP8981
Rack PDU 2G, Switched, ZeroU, 11kW, 230V, (21) C13 & (3) C19
APC Switched Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V, 230V , Output Connections: IEC 320 C13,IEC 320 C19.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable.
Data sheet
- Cable length
- 1.83 m
- Colour of product
- Black
- Dimensions (WxDxH)
- 56 x 46 x 1791 mm
- Input connection type
- IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
- Maximum input current per phase
- 20 A
- Maximum total current draw per phase
- 20 A
- Nominal input voltage
- 83 - 159 VAC
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- -25 - 65 °C
- Output connections
- (21) IEC 320 C13, (3) IEC 320 C19
- Package dimensions (WxDxH)
- 165 x 114 x 2002 mm
- Package weight
- 8950 g
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- -5 - 45 °C
- Storage temperature range (T-T)
- -5 - 45 °C
- Weight
- 7000 g
Specific References
- EAN13
- 0731304277187
Rack PDU 2G, Switched, ZeroU, 11kW, 230V, (21) C13 & (3) C19
