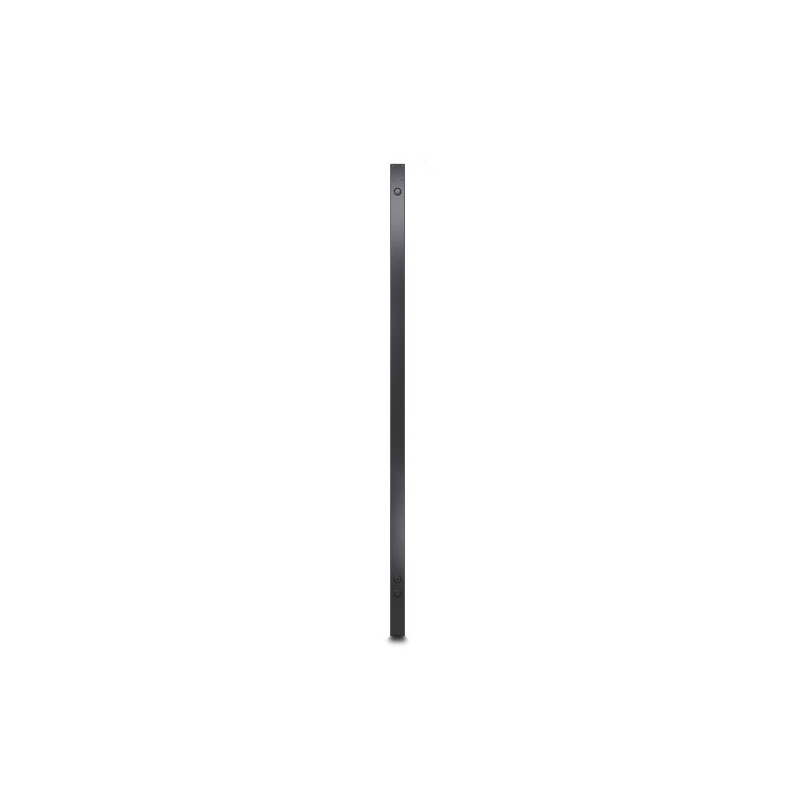

APC AP8959EU3

Data sheet

Cable length

3 m

Certification

cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI A, VDE

Colour of product

Black

Dimensions (WxDxH)

56 x 46 x 1791 mm

Input connection type

IEC 309 16A 2P+E

Maximum input current per phase

63 A

Maximum total current draw per phase

400 A

Nominal input voltage

200 - 230 V

Nominal output voltage

400V

Operating relative humidity (H-H)

5 - 95 %

Operating relative humidity range

5 - 95 %

Operating temperature (T-T)

8 - 35 °C

Operating temperature range (T-T)

-5 - 45 °C

Output connections

(21) IEC 320 C13, (3) IEC 320 C19

Package dimensions (WxDxH)

165 x 114 x 2002 mm

Package weight

8590 g

Source data-sheet

Icecat.biz

Storage relative humidity (H-H)

5 - 95 %

Storage relative humidity range

5 - 95 %

Storage temperature (T-T)

8 - 85 °C

Storage temperature range (T-T)

-25 - 65 °C

Weight

5730 g

Specific References

EAN13

0731304277149
