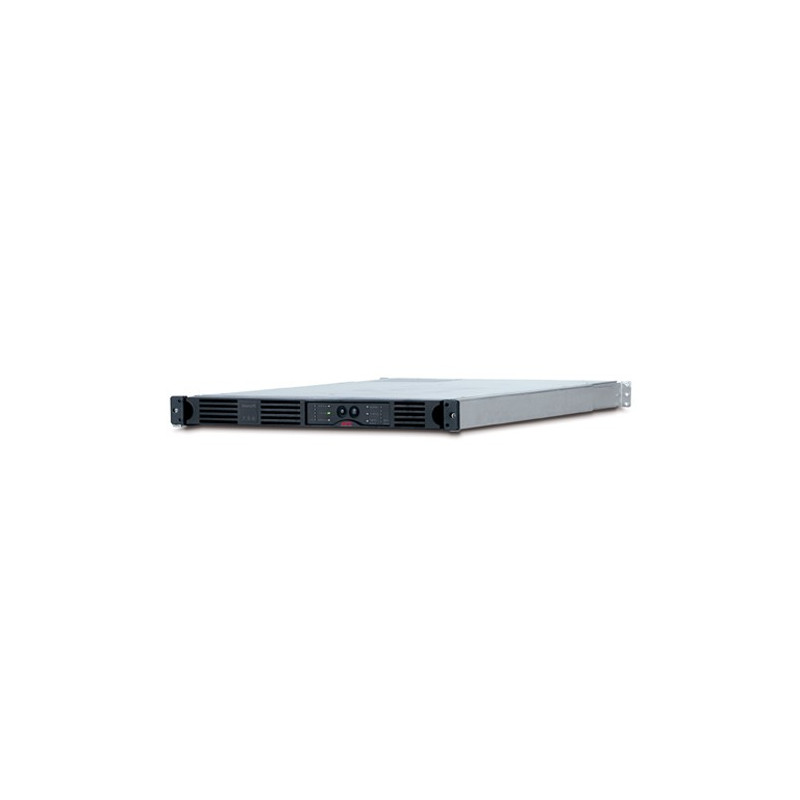

APC Smart-UPS SUA750RMI1U
APC Smart-UPS, 750VA/480W, Input 230V/ Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB
Please Note, this product is not for consumer use in the European Union.
Over 10 million currently installed - the one you can trust.APC Smart-UPS® protects critical data by supplying reliable, network-grade power in either traditional tower or rack-optimized form factors. Award-winning Smart-UPS® is the perfect UPS for protecting business critical servers, voice and data networks, point of sale, retail/bank back office and ATM's. High real power output (watts), generous runtime, sine wave output, 16-segment LED visual display, and intelligent battery management make Smart-UPS the leading server class UPS. Included PowerChute® management software provides IT administrators the comfort of safe system shutdown and advanced UPS management. Additional manageability is available through the SmartSlot, an internal accessory slot that allows installation of optional accessories to enhance the performance of your UPS. Designed and manufactured by APC and fully backed with free 24x7 technical support, Smart-UPS remains the industry standard for all network UPSs. With over 10 million units installed worldwide and over 15 years of proven performance, Smart-UPS is a UPS businesses trust for their critical applications.
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 4 AC outlet(s)
- Battery capacity
- 216 VAh
- Battery replacement alarms
- LED
- Battery technology
- Sealed Lead Acid (VRLA)
- Bundled software
- PowerChute Smart-UPS Bundle
- Cables included
- RS-232,USB cable
- Certification
- C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, PEP, EOLI
- Colour of product
- Black
- Depth
- 660 mm
- Dimensions (WxDxH)
- 431.8 x 660.4 x 43.7 mm
- Filtering
- 0.3% IEEE
- Height
- 990mm
- I/O ports
- DB-9 RS-232, SmartSlot, USB
- Input connection type
- IEC-320 C14
- Input operation voltage (max)
- 600 V
- Input operation voltage (min)
- 96 V
- Noise level
- 97.4 dB
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating relative humidity range
- 0 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- (4)IEC 320 C13
(2)IEC Jumpers
- Output power
- 480 W
- Output power capacity (VA)
- 750 VA
- Package height
- 191 mm
- Package weight
- 25450 g
- Package width
- 559 mm
- Power supply input frequency
- 50/60 Hz
- Quantity per pallet
- 8 pc(s)
- Rack capacity
- 9U
- Replacement battery cartridge
- RBC34
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage relative humidity range
- 0 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -15 - 45 °C
- Surge energy rating
- 990 J
- Typical backup time at full load
- 7.1 min
- Typical backup time at half load
- 23.6 min
- Waveform
- Square
- Weight
- 21820 g
- Width
- 993 mm
Specific References
- EAN13
- 0731304123927
