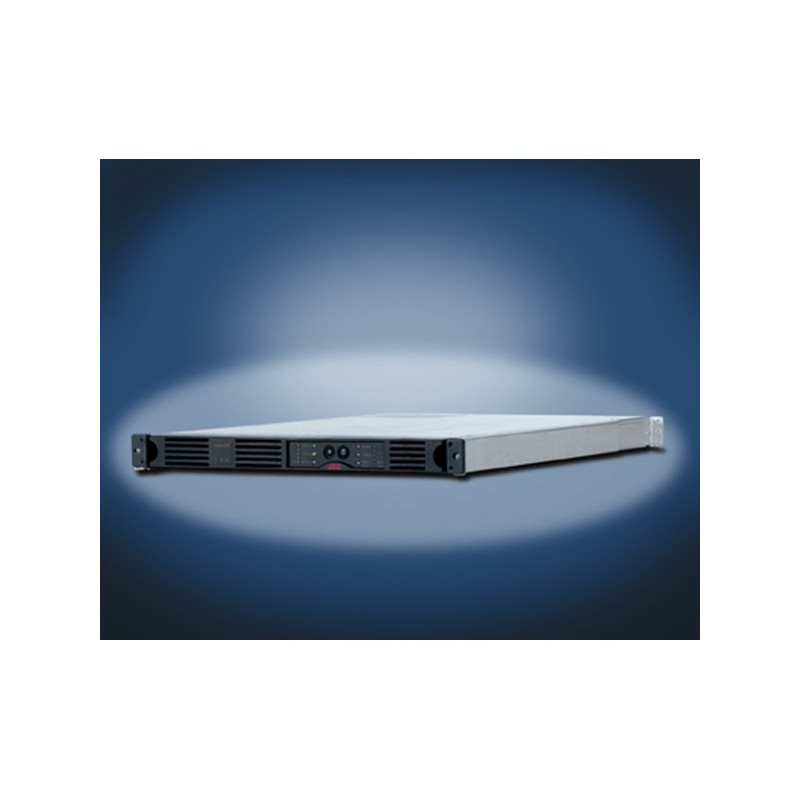

APC Smart-UPS 750VA
APC Smart-UPS 750VA USB RM 1U 120V
Please Note, this product is not for consumer use in the European Union.
Data sheet
- Battery type
- Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
- Bundled software
- PowerChute Smart-UPS Bundle
- Colour of product
- Black
- Dimensions (WxDxH)
- 431.8 x 660.4 x 43.7 mm
- Filtering
- 0.3% IEEE/UL 1449
- I/O ports
- DB-9 RS-232, SmartSlot, USB
- Input connection type
- IEC-320 C14
- Interface
- DB-9 RS-232, SmartSlot, USB
- LED indicators
- LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity range
- 0 - 95 %
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- (4)IEC 320 C13
(2)IEC Jumpers
- Output power
- 480 W
- Output power capacity (VA)
- 750 VA
- Power supply input frequency
- 50 - 60 ± 3 Hz
- Replacement battery cartridge
- (1) RBC34
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 0 - 95 %
- Storage temperature range (T-T)
- -15 - 45 °C
- Surge energy rating
- 990 J
- Typical backup time at full load
- 7.1 min
- Typical backup time at half load
- 23.6 min
Specific References
- EAN13
- 0731304123903
