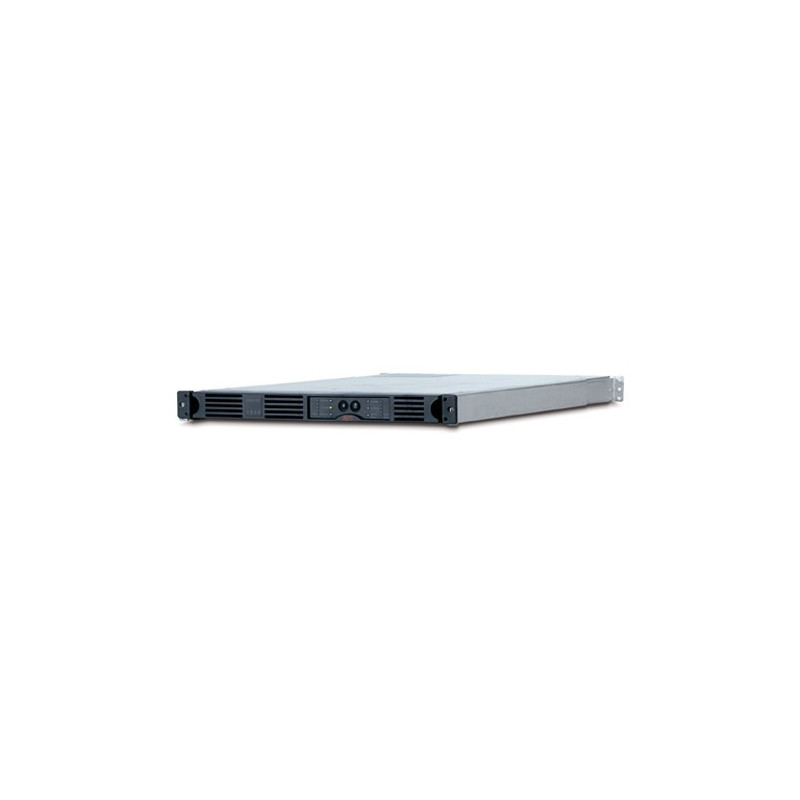

APC Smart-UPS SUA1000RMI1U
Smart-UPS, 640 Watts, 1000 VA,Input 230V, Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB, Rack Height 1 U
Please Note, this product is not for consumer use in the European Union.
Boost and Trim Automatic Voltage Regulation (AVR)Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Cold-start capable
Provides temporary battery power when the utility power is out.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Network manageable
Provides remote management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure® Manager.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Resettable circuit breakers
Enables a quick recovery from overload events.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 4 AC outlet(s)
- Battery capacity
- 216 VAh
- Battery recharge time
- 2 h
- Battery replacement alarms
- LED
- Battery technology
- Sealed Lead Acid (VRLA)
- Bundled software
- - PowerChute Business Edition v6.2.2 Agent f Linux
- PowerChute Business Edition v6.2.2 f Netware 5.1/6.0
- PowerChute Business Edition v6.2.2 f XP / 2000 / NT(Sp6 or higher) - 5 Node
- PowerChute Business Editon v6.0.2 f Solaris 8.0 - Cables included
- RS-232,USB cable
- Certification
- C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, PEP, EOLI
- Colour of product
- Black
- Depth
- 660 mm
- Dimensions (WxDxH)
- 431.8 x 660.4 x 43.7 mm
- Height
- 990mm
- I/O ports
- USB
- Input connection type
- IEC-320 C14
- Input operation voltage (max)
- 600 V
- Input operation voltage (min)
- 96 V
- Interface
- DB-9 RS-232, SmartSlot, USB
- Noise level
- 97.4 dB
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating relative humidity range
- 0 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output power
- 640 W
- Output power capacity (VA)
- 1000 VA
- Package dimensions (WxDxH)
- 559 x 775 x 191 mm
- Package height
- 191 mm
- Package weight
- 25450 g
- Package width
- 559 mm
- Power supply input frequency
- 50/60 Hz
- Quantity per pallet
- 8 pc(s)
- Rack capacity
- 9U
- Replacement battery cartridge
- RBC34
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage relative humidity range
- 0 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -15 - 45 °C
- Surge energy rating
- 990 J
- Typical backup time at full load
- 5.4 min
- Typical backup time at half load
- 9.7 min
- Waveform
- Square
- Weight
- 21820 g
- Width
- 993 mm
Specific References
- EAN13
- 7313041239104
Smart-UPS, 640 Watts, 1000 VA,Input 230V, Output 230V, Interface Port DB-9 RS-232, SmartSlot, USB, Rack Height 1 U
