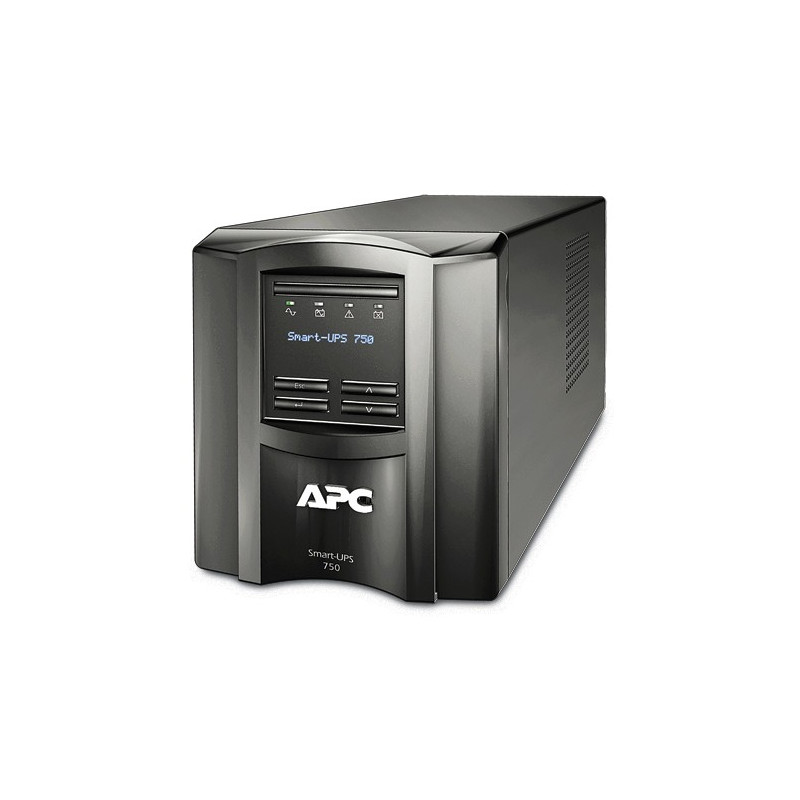

APC Smart-UPS SMT750I
Smart-UPS 750VA LCD 230V
Please Note, this product is not for consumer use in the European Union.
Intuitive LCD interfaceProvides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 6 AC outlet(s)
- Battery capacity
- 146 VAh
- Battery recharge time
- 3 h
- Battery technology
- Sealed Lead Acid (VRLA)
- Cable length
- 1.83 m
- Cables included
- RS-232,USB cable
- Certification
- CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH, PEP, EOLI
- Colour of product
- Black
- Depth
- 358 mm
- Dimensions (WxDxH)
- 161 x 138 x 363 mm
- Display
- LCD
- Efficiency
- 98 %
- Ethernet LAN (RJ-45) ports quantity
- 1
- Height
- 157 mm
- Input connection type
- IEC-320 C14
- Input operation voltage (max)
- 600 V
- Input operation voltage (min)
- 96 V
- Noise level
- 97.4 dB
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- 6 x IEC 320 C13
- Output operation voltage (max)
- 415 V
- Output operation voltage (min)
- 97 V
- Output power
- 500 W
- Output power capacity (VA)
- 750 VA
- Output voltage note
- 220/230/240
- Package dimensions (WxDxH)
- 301 x 278 x 499 mm
- Package height
- 301 mm
- Package weight
- 14230 g
- Package width
- 278 mm
- Power supply input frequency
- 50/60 Hz
- Quantity per pallet
- 24 pc(s)
- Replacement battery cartridge
- RBC48
- RoHS compliance
- Yes
- Serial ports quantity
- Standard HP UPS Management Module
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -15 - 45 °C
- Surge energy rating
- 990 J
- Typical backup time at full load
- 4.6 min
- Typical backup time at half load
- 15.8 min
- Waveform
- Square
- Weight
- 13180 g
- Width
- 138 mm
Specific References
- EAN13
- 0731304269069
