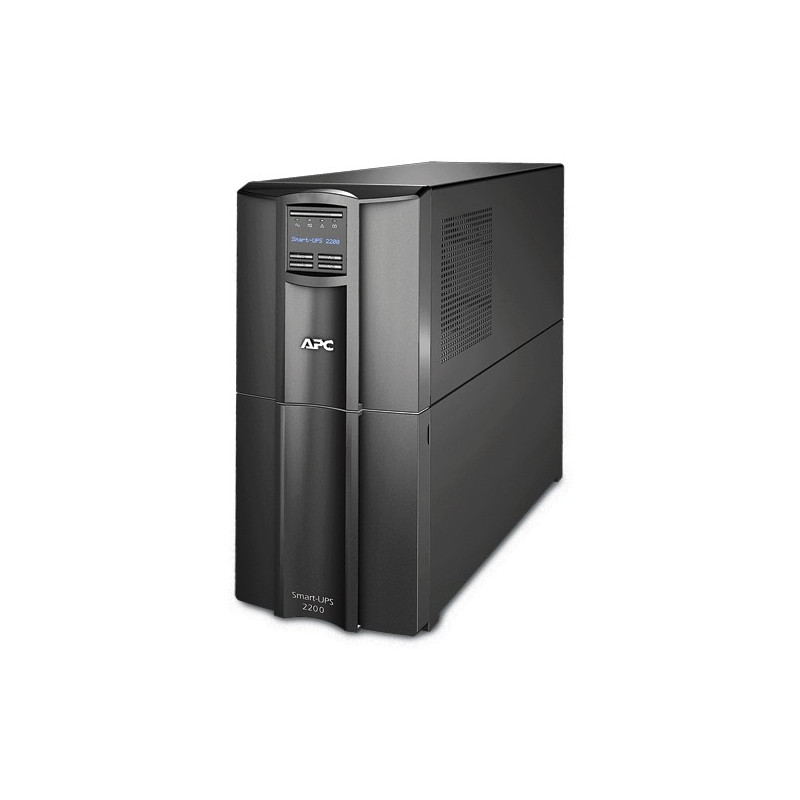

APC Smart-UPS SMT2200I
Smart-UPS 2200VA LCD 230V
Please Note, this product is not for consumer use in the European Union.
Intuitive LCD interfaceProvides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
StruxureWare Central compatible
Enables centralized management via StruxureWare Central.
Data sheet
- AC outlet types
- C13 coupler,C19 coupler
- AC outlets quantity
- 9 AC outlet(s)
- Battery capacity
- 783 VAh
- Battery recharge time
- 3 h
- Battery technology
- Sealed Lead Acid (VRLA)
- Cable length
- 1.83 m
- Cables included
- RS-232,USB cable
- Certification
- CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
- Colour of product
- Black
- Depth
- 544 mm
- Dimensions (WxDxH)
- 435 x 197 x 544 mm
- Efficiency
- 97.9 %
- Height
- 435 mm
- I/O ports
- 1 x IEC-320 C20
1 x Schuko CEE 7 / EU1-16P
1 x BS1363A - Input operation voltage (max)
- 600 V
- Input operation voltage (min)
- 96 V
- Maximum current
- 96 A
- Noise level
- 97.4 dB
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- 8 x IEC 320 C13
1 x IEC 320 C19 - Output power
- 1980 W
- Output power capacity (VA)
- 2200 VA
- Output voltage note
- 220/230/240
- Package dimensions (WxDxH)
- 699 x 381 x 762 mm
- Package height
- 699 mm
- Package weight
- 61900 g
- Package width
- 381 mm
- Power supply input frequency
- 50/60 Hz
- Quantity per pallet
- 9 pc(s)
- Replacement battery cartridge
- RBC55
- RoHS compliance
- Yes
- Serial ports quantity
- 3
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -15 - 45 °C
- Surge energy rating
- 365 J
- Typical backup time at full load
- 8.7 min
- Typical backup time at half load
- 25 min
- Waveform
- Square
- Weight
- 48800 g
- Width
- 993 mm
Specific References
- EAN13
- 0731304274025
