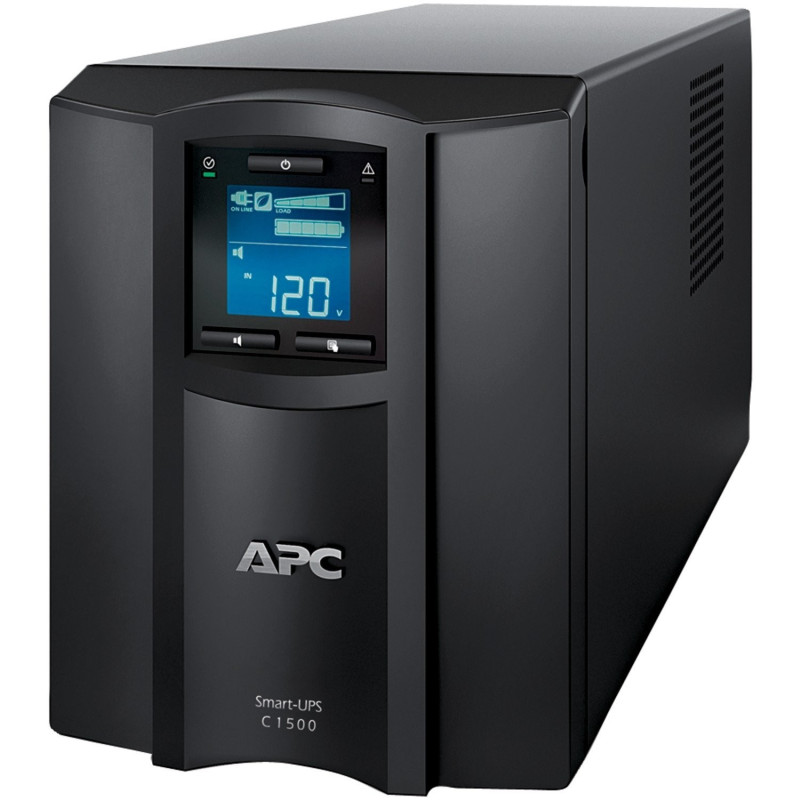

APC Smart-UPS SMC1500I

Data sheet

AC outlet types

C13 coupler

AC outlets quantity

8 AC outlet(s)

Battery capacity

220 VAh

Battery recharge time

3 h

Battery technology

Sealed Lead Acid (VRLA)

Cables included

USB cable

Certification

C-tick, CE, CSA, GOST, UL 1778, VDE

Colour of product

Black

Depth

439 mm

Display

LCD

Efficiency

98.5 %

Energy Star certified

Yes

Height

219 mm

Input operation voltage (max)

600 V

Input operation voltage (min)

170 V

Noise level

97.4 dB

Nominal input voltage

83 - 159 VAC

Nominal output voltage

400V

Non-operating altitude

9144 m

Operating altitude

914.4 - 2133 m

Operating relative humidity (H-H)

0 - 95 %

Operating relative humidity range

0 - 95 %

Operating temperature (T-T)

8 - 35 °C

Operating temperature range (T-T)

0 - 40 °C

Output operation voltage (max)

230 V

Output operation voltage (min)

230 V

Output power

900 W

Output power capacity (VA)

1500 VA

Output voltage THD

5 %

Package dimensions (WxDxH)

328 x 595 x 376 mm

Package height

376 mm

Package weight

27230 g

Package width

985.6 mm

Power plug

Type G (BS 1363)

Power supply input frequency

50/60 Hz

Quantity per pallet

18 pc(s)

Replacement battery cartridge

RBC6

RoHS compliance

Yes

Serial ports quantity

Standard HP UPS Management Module

Source data-sheet

Icecat.biz

Storage relative humidity (H-H)

0 - 95 %

Storage relative humidity range

0 - 95 %

Storage temperature (T-T)

8 - 85 °C

Storage temperature range (T-T)

-15 - 45 °C

Surge energy rating

990 J

Typical backup time at full load

4.7 min

Typical backup time at half load

14.1 min

Waveform

Square

Weight

24090 g

Width

993 mm

Specific References

EAN13

0731304303701
