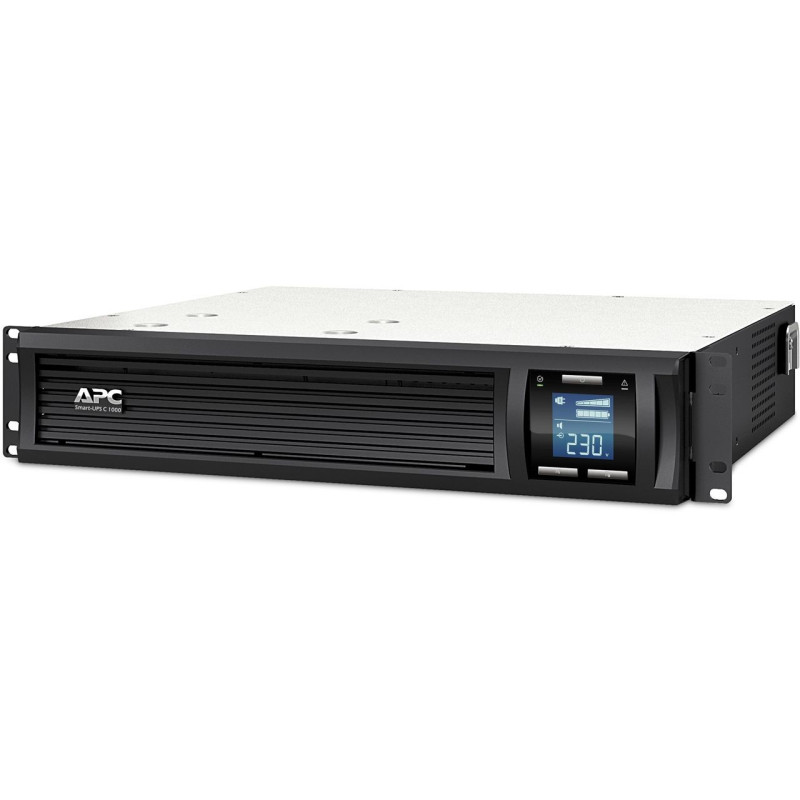

APC SMC1000I-2U Smart-UPS C 1000VA 2U Rack mountable LCD 230V

APC Smart-UPS SMC1000I-2U

Smart-UPS C 1000VA - 600 W, 2U, LCD, 230V, 50/60 Hz, USB, 459 J
Out of Stock
Reference: SMC1000I-2U

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Please Note, this product is not for consumer use in the European Union.

APC Smart-UPS,600 Watts /1000 VA,Input 230V /Output 230V, Interface Port USB, Rack Height 2 U



Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, USB cable



Standard Lead Time: Usually Ships within 2 Weeks

Data sheet

AC outlet types
C13 coupler
AC outlets quantity
4 AC outlet(s)
Battery capacity
170 VAh
Battery recharge time
3 h
Battery technology
Sealed Lead Acid (VRLA)
Cable length
2.44 m
Cables included
USB cable
Certification
REACH, C-tick, CE, GOST, UL 1778, VDE
Colour of product
Black
Depth
406 mm
Display
LCD
Energy Star certified
Yes
Height
990mm
Input operation voltage (max)
287 V
Input operation voltage (min)
96 V
Noise level
97.4 dB
Nominal input voltage
83 - 159 VAC
Nominal output voltage
400V
Non-operating altitude
9144 m
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
0 - 95 %
Operating relative humidity range
0 - 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 40 °C
Output operation voltage (max)
120 V
Output operation voltage (min)
120 V
Output power
600 W
Output power capacity (VA)
1000 VA
Package dimensions (WxDxH)
546 x 584 x 241 mm
Package weight
22330 g
Package width
546 mm
Power supply input frequency
50/60 Hz
Quantity per pallet
16 pc(s)
Rack capacity
9U
Replacement battery cartridge
APCRBC124
RoHS compliance
Yes
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
0 - 95 %
Storage relative humidity range
0 - 95 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-15 - 45 °C
Surge energy rating
990 J
Typical backup time at full load
6 min
Typical backup time at half load
9.7 min
Waveform
Square
Weight
20520 g
Width
993 mm

Specific References

EAN13
0731304303695
