APC Smart-UPS On-Line

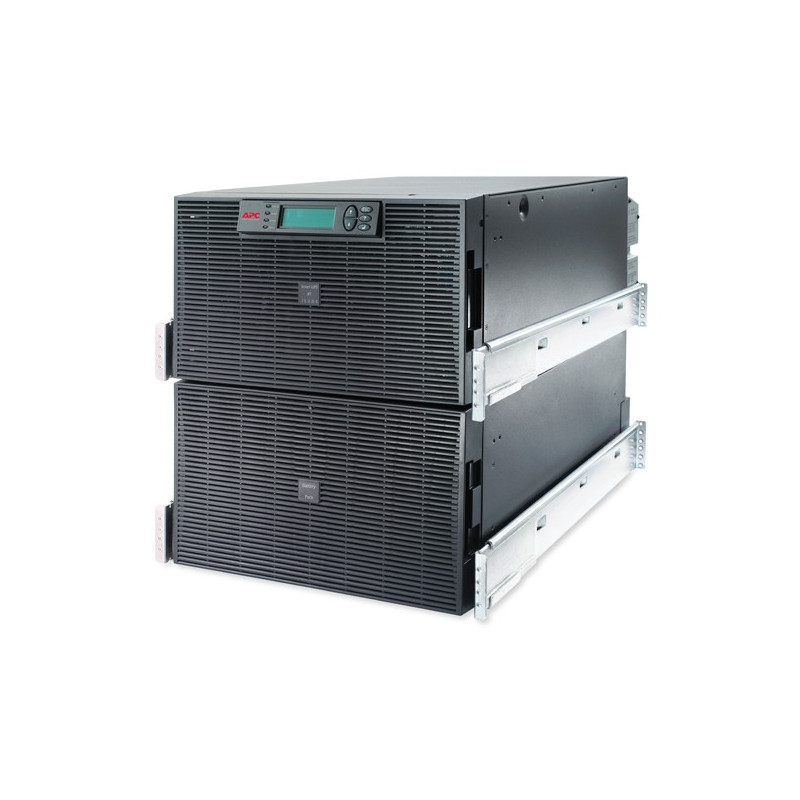

Smart-UPS RT 15kVA RM 230V
Please Note, this product is not for consumer use in the European Union.
APC Smart-UPS RT, 12 kW / 15 kVA,Input 230V / Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot, Extended runtime model, Rack Height 12 U.Includes: CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card.
Data sheet
- Battery recharge time
- 2.5 h
- Battery technology
- Sealed Lead Acid (VRLA)
- Certification
- EN/IEC 62040-2,EN/IEC 62040-1-1,VDE
- Colour of product
- Black
- Dimensions (WxDxH)
- 432 x 773 x 533 mm
- Ethernet LAN (RJ-45) ports quantity
- 1
- Interface
- DB-9 RS-232, RJ-45 10/100 Base-T,Smart-Slot
- Noise level
- 50 dB
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity range
- 0 - 95 %
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- (1) Hard Wire 3-wire (H N + G),
(1) Hard Wire 5-wire (3PH + N + G),
(8) IEC 320 C19 - Output power
- 12000 W
- Output power capacity (VA)
- 15000 VA
- Output voltage note
- 230/240 V
- Package dimensions (WxDxH)
- 610 x 1003 x 990 mm
- Package weight
- 314090 g
- Power supply input frequency
- 40/70 Hz
- Replacement battery cartridge
- RBC44
- Serial ports quantity
- Standard HP UPS Management Module
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 0 - 95 %
- Storage temperature range (T-T)
- -15 - 45 °C
- Typical backup time at full load
- 8.3 min
- Typical backup time at half load
- 22.4 min
- Weight
- 247730 g
Specific References
- EAN13
- 7313042557276
Smart-UPS RT 15kVA RM 230V
