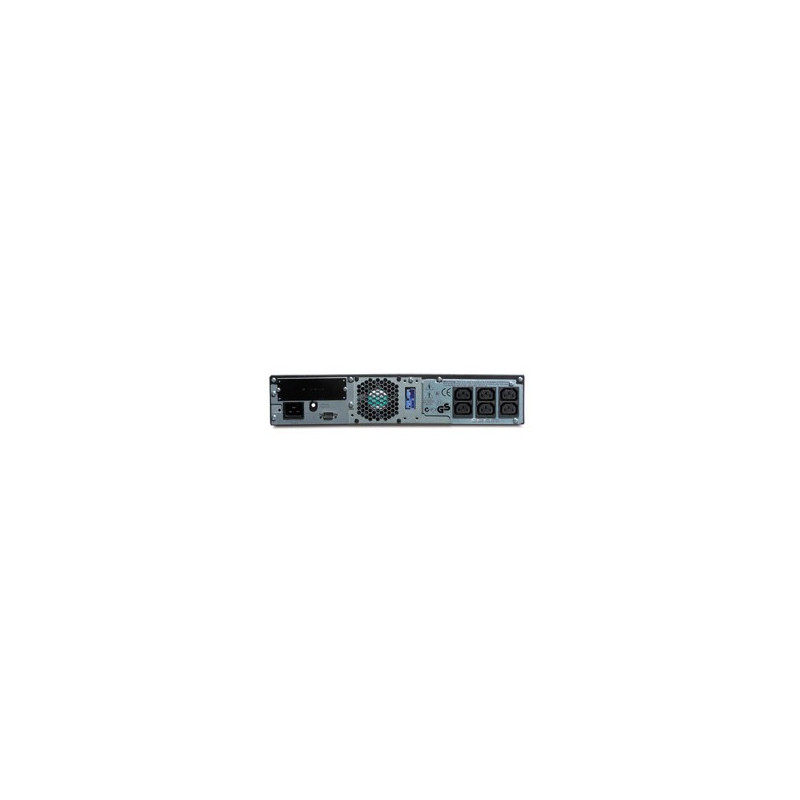

APC Smart-UPS On-Line
Smart-UPS RT, 1000VA/700W, Input 230V/Output 230V, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, Rack Height 2 U
Please Note, this product is not for consumer use in the European Union.
A versatile UPS developed for the harshest power conditions in the world.APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
Data sheet
- AC outlet types
- C13 coupler
- AC outlets quantity
- 6 AC outlet(s)
- Battery capacity
- 328 VAh
- Battery replacement alarms
- LED
- Battery technology
- Sealed Lead Acid (VRLA)
- Cables included
- RS-232
- Certification
- C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE, PEP, EOLI
- Colour of product
- Black
- Crest factor
- 3:1
- Depth
- 483 mm
- Dimensions (WxDxH)
- 430 x 480 x 90 mm
- Efficiency
- 89.1 %
- Height
- 990mm
- I/O ports
- DB-9 RS-232, SmartSlot
- Input connection type
- IEC-320 C14
- Input operation voltage (max)
- 600 V
- Input operation voltage (min)
- 96 V
- Noise level
- 50 dB
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating relative humidity range
- 0 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- (6) IEC 320 C13
(2) IEC Jumpers
- Output operation voltage (max)
- 415 V
- Output operation voltage (min)
- 97 V
- Output power
- DC 9V
- Output power capacity (VA)
- 1000 VA
- Output voltage note
- 100 - 280 V
- Package height
- 286 mm
- Package weight
- 27800 g
- Package width
- 630 mm
- Power supply input frequency
- 50/60 Hz
- Quantity per pallet
- 4 pc(s)
- Rack capacity
- 9U
- Replacement battery cartridge
- RBC31
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage relative humidity range
- 0 - 95 %
- Storage temperature (T-T)
- -20 - 50 °C
- Storage temperature range (T-T)
- -20 - 45 °C
- Surge energy rating
- 420 J
- Typical backup time at full load
- 13.8 min
- Typical backup time at half load
- 32 min
- Waveform
- Square
- Weight
- 23000 g
- Width
- 993 mm
Specific References
- EAN13
- 0731304205418
Smart-UPS RT, 1000VA/700W, Input 230V/Output 230V, Interface Port DB-9 RS-232, SmartSlot, Extended runtime model, Rack Height 2 U
