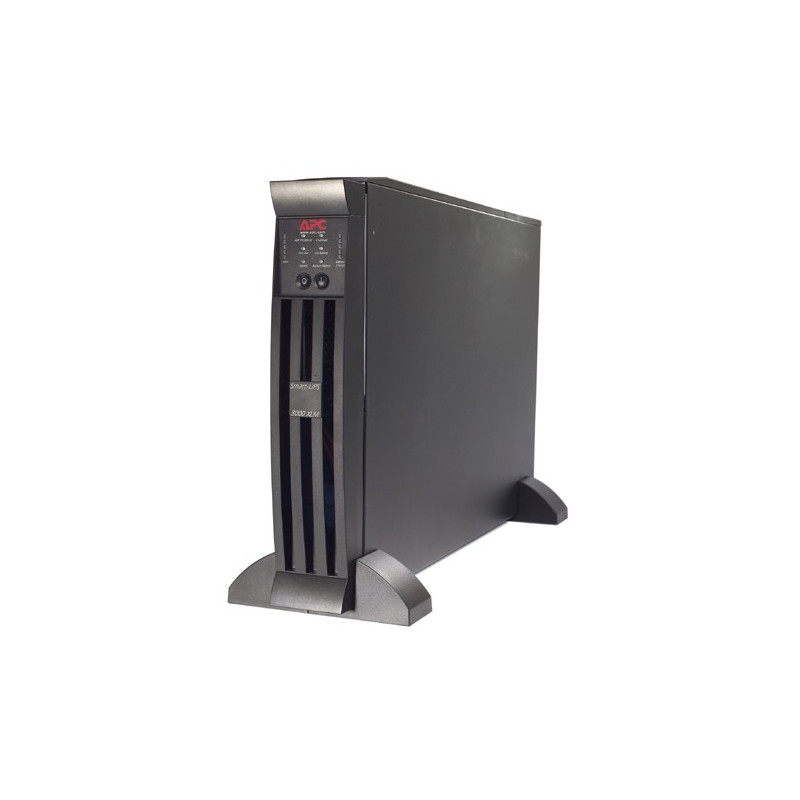

APC SUM3000RMXLI2U Smart-UPS XL Modular 3000VA 230V Rackmount/Tower
  • APC SUM3000RMXLI2U Smart-UPS XL Modular 3000VA 230V Rackmount/Tower
  • APC SUM3000RMXLI2U Smart-UPS XL Modular 3000VA 230V Rackmount/Tower

APC SUM3000RMXLI2U

APC Smart-UPS XL Modular 3000VA 230V Rackmount/Tower
Out of Stock
Reference: SUM3000RMXLI2U

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Please Note, this product is not for consumer use.

APC Smart-UPS XL, 3000VA/2850W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2 U


Includes: CD with software, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual



Features:


Adjustable voltage-transfer points, Audible Alarms, Automatic internal bypass,

Automatic self-test, Boost and Trim Automatic Voltage Regulation (AVR),

Cold-start capable, Disconnected battery notification, Hot-swappable batteries, LED status indicators, Modular design, Network manageable,

Rack/Tower Convertible, Safety-agency approved, Scalable runtime,

Serial Connectivity, SmartSlot, Temperature-compensated battery charging,

USB Connectivity, User-replaceable batteries, User-replaceable power modules.




Data sheet

Battery type
VRLA
Bundled software
CD with software
Cable length
3 m
Colour of product
Black
Dimensions (WxDxH)
430 x 680 x 90 mm
Filtering
0.3% IEEE/UL 1449
I/O ports
Pre-Installed SmartSlot Card - AP9617
Input connection type
YP-61
Interface
DB-9 RS-232, RJ-45 10/100 Base-T, USB
LED indicators
LED status display
Networking features
Yes
Nominal input voltage
83 - 159 VAC
Nominal output voltage
400V
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
0 - 95 %
Operating relative humidity range
0 - 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 40 °C
Output connections
(7) IEC 320 C13
(1) IEC 320 C19
(4) IEC Jumpers
Output power
2850 W
Output power capacity (VA)
3000 VA
Power supply input frequency
50 - 60 Hz
Replacement battery cartridge
RBC43
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
0 - 95 %
Storage relative humidity range
0 - 95 %
Storage temperature (T-T)
-20 - 45 °C
Storage temperature range (T-T)
-20 - 45 °C
Surge energy rating
490 J
Typical backup time at full load
3.5 min
Typical backup time at half load
11.9 min
Weight
47000 g
Filtering description
0.3% IEEE/UL 1449

Specific References

EAN13
7313042245708
