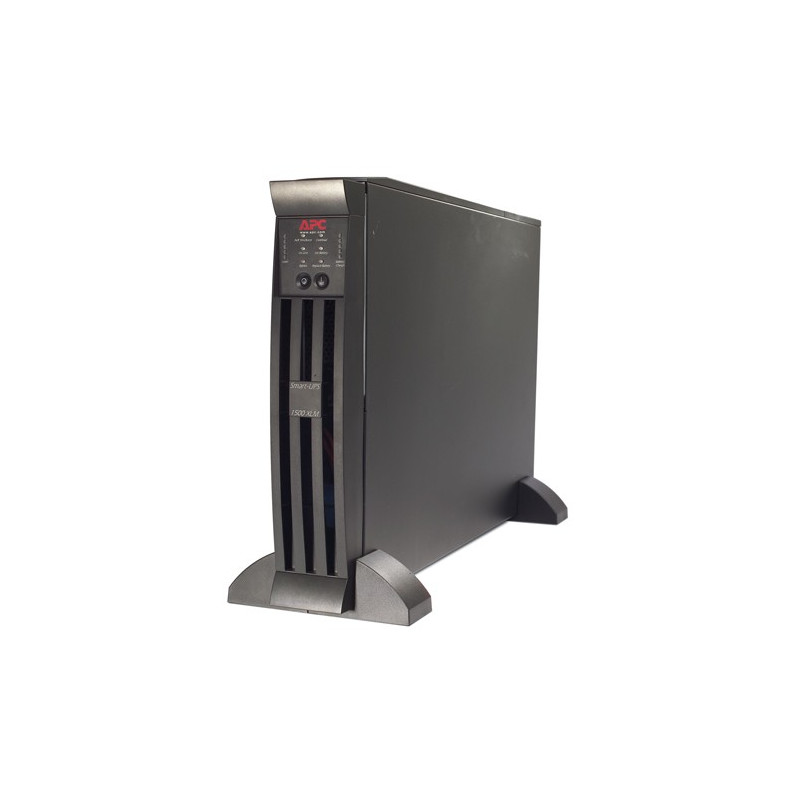

APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA 230V Rackmount/Tower
  • APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA 230V Rackmount/Tower
  • APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA 230V Rackmount/Tower

APC Smart-UPS XL Modular 1500VA 230V

APC Smart-UPS XL Modular 1500VA 230V Rackmount/Tower
Out of Stock
Reference: SUM1500RMXLI2U

Require Project Pricing?

Click here to email your parts list and we will send you a quote

Please Note, this product is not for consumer use in the European Union.

APC Smart-UPS XL, 1500VA/1425W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2 U


Includes: CD with software, Installation Guide, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP Management Card



Features: Adjustable voltage-transfer points, Automatic internal bypass,

Automatic self-test, Boost and Trim Automatic Voltage Regulation (AVR),

Cold-start capable, Disconnected battery notification, Global safety approvals, Hot-swappable batteries, LED status indicators, Modular design,

Network manageable, Rack/Tower Convertible, Safety-agency approved,

Scalable runtime, Serial Connectivity, SmartSlot, Temperature-compensated battery charging, USB Connectivity, User-replaceable batteries,

User-replaceable power modules.

Data sheet

Battery type
VRLA
Cable length
3 m
Certification
C-tick,CE,EN 50091-2,EN 55022 Class A,EN 61000-3-2,GOST
Colour of product
Black
Dimensions (WxDxH)
600 x 980 x 250 mm
I/O ports
AP9619
Input connection type
IEC-320 C14
Interface
DB-9 RS-232, RJ-45 10/100 Base-T, USB
Networking features
Yes
Nominal input voltage
83 - 159 VAC
Nominal output voltage
400V
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
0 - 95 %
Operating relative humidity range
0 - 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 40 °C
Output connections
(9) IEC 320 C13
Output power
1425 W
Output power capacity (VA)
1500 VA
Output voltage note
220: 230 / 240
Power supply input frequency
50 - 60 Hz
Replacement battery cartridge
RBC43
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
0 - 95 %
Storage relative humidity range
0 - 95 %
Storage temperature (T-T)
-20 - 45 °C
Storage temperature range (T-T)
-20 - 45 °C
Surge energy rating
490 J
Typical backup time at full load
11.9 min
Typical backup time at half load
28.3 min
Weight
47000 g

Specific References

EAN13
7313042245562
