APC AP8716R

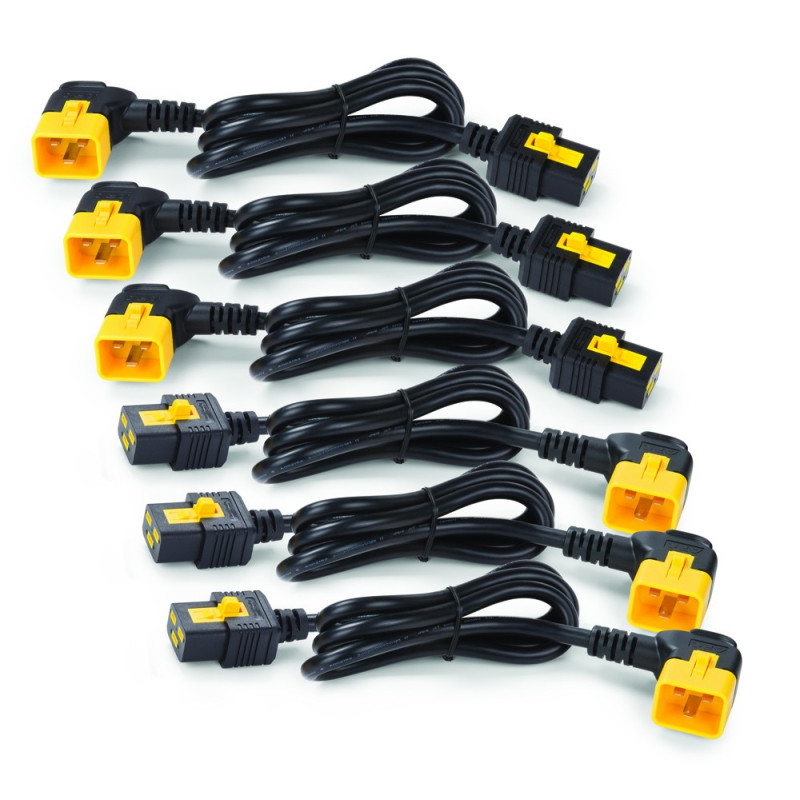

Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.8m
Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Includes: 3 Left-angle jumper cords, 3 Right-angle jumper cords
Includes: 3 Left-angle jumper cords, 3 Right-angle jumper cords
Data sheet
- Cable length
- 1.83 m
- Colour of product
- Black
- Connector 1
- IEC-320 C19
- Connector 2
- IEC-320 C20
- Dimensions (WxDxH)
- 80 x 70 x 300 mm
- Gender
- Male/Female
- Gender type
- Male/Female
- Input current
- 16 A
- Non-operating altitude
- 9144 m
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 20 - 80 %
- Operating relative humidity range
- 20 - 80 %
- Operating temperature (T-T)
- 0 - 75 °C
- Operating temperature range (T-T)
- 0 - 75 °C
- Package height
- 300 mm
- Package weight
- 2160 g
- Package width
- 80, 70 mm
- Packaging height
- 300 mm
- Packaging width
- 80, 70 mm
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 20 - 80 %
- Storage temperature (T-T)
- -25 - 75 °C
- Storage temperature range (T-T)
- -25 - 75 °C
- Weight
- 2160 g
Specific References
- EAN13
- 0731304279716
Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.8m
