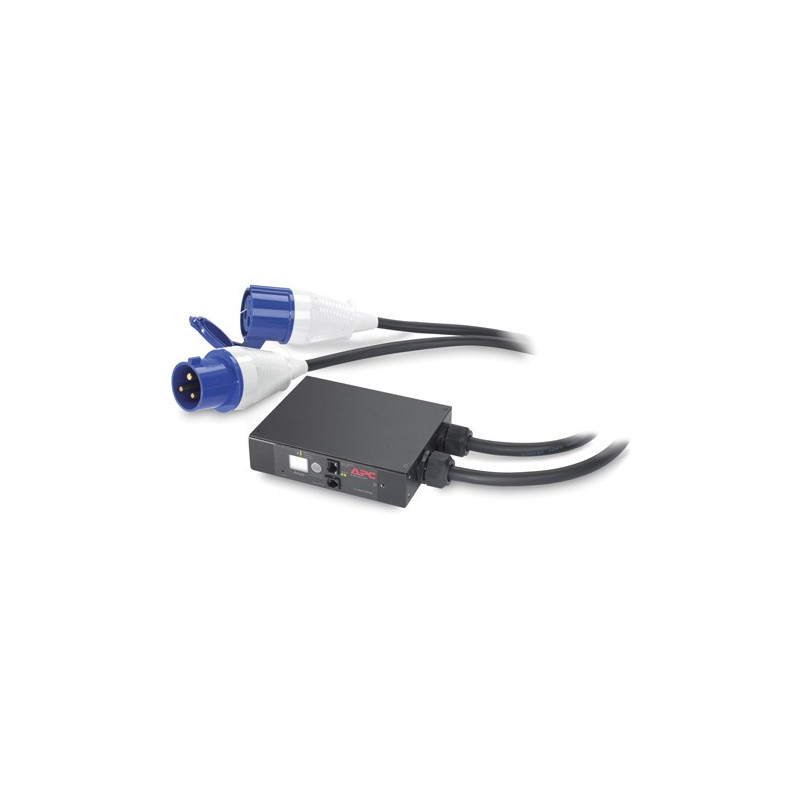

APC In-Line Current Meter
In-Line Current Meter, 32A, 230V, IEC309
The APC In-Line Current Meter monitors current to devices in the datacenter including existing basic rack PDUs and freestanding equipment.
Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable.
Features:
-Alarm Thresholds.
-Flash Upgradeable.
-InfraStruXure Manager compatible.
-LED status indicators.
-Local and web-based monitoring.
-Local Current Monitoring Display.
-Multiple mounting methods.
-Network Management.
-Remote Current Monitoring.
-Remote Management Capabilities.
-Single input power source.
Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable.
Features:
-Alarm Thresholds.
-Flash Upgradeable.
-InfraStruXure Manager compatible.
-LED status indicators.
-Local and web-based monitoring.
-Local Current Monitoring Display.
-Multiple mounting methods.
-Network Management.
-Remote Current Monitoring.
-Remote Management Capabilities.
-Single input power source.
Data sheet
- Cable length
- 0.91 m
- Certification
- AS/NZS 3548 (C-Tick) A,C-tick,CE,EN 55022 A,EN 55024,EN 61000-3-2,EN 61000-3-3,GOST,IEC 61000-3-2,IEC 61000-3-3,VDE.
- Dimensions (WxDxH)
- 178 x 140 x 44 mm
- Input connection type
- IEC 309 32A 2P+E
- Load capacity
- 7360 VA
- Maximum input current per phase
- 63 A
- Maximum total current draw per phase
- 400 A
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- -5 - 45 °C
- Output connections
- (1) IEC 309 32A (2P+E)\n
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -25 - 65 °C
- Weight
- 2250 g
Specific References
- EAN13
- 0731304259008
