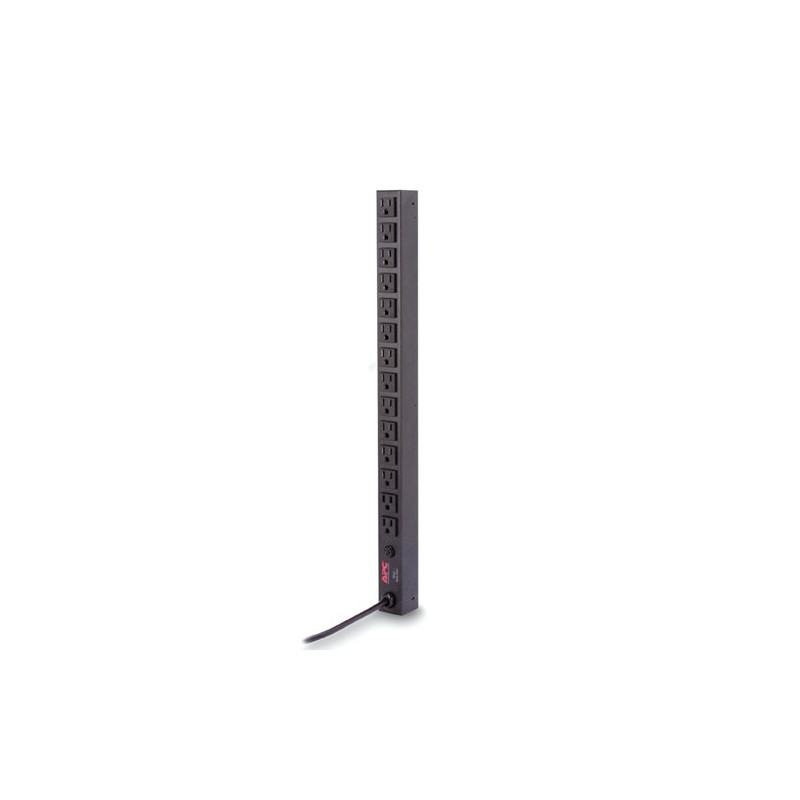

APC Basic Rack PDU AP9567
Rack PDU - 0U - 15A - 100/120V
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Data sheet
- Cable length
- 3.6 m
- Certification
- cUL/CSA/ETI/UL 1363
- Colour of product
- Beige
- Dimensions (WxDxH)
- 44 x 44 x 610 mm
- Load capacity
- 1800 VA
- Nominal input voltage
- 120 V
- Operating relative humidity range
- 0 - 95 %
- Operating temperature range (T-T)
- 0 - 45 °C
- Output connections
- 14 x NEMA 5-15R
- Package dimensions (WxDxH)
- 178 x 152 x 648 mm
- Rack mounting
- 0U
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 0 - 95 %
- Storage temperature range (T-T)
- -25 - 65 °C
- Weight
- 2180 g
Specific References
- EAN13
- 0731304207061
Rack PDU - 0U - 15A - 100/120V
