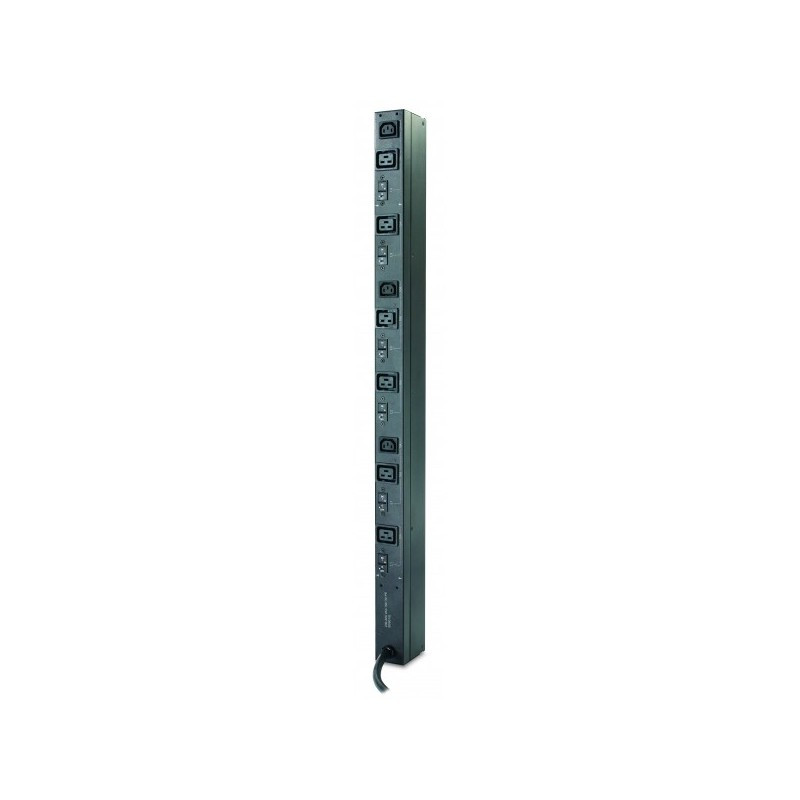

APC Rack PDU Basic Zero U
Rack PDU, Basic, Zero U, 22kW, 400V, (6) C19 & (3) C13
APC Basic Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 32A 3P+N+PE , Cord Length: 6 feet ( 1.83 meters ) , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Installation guide, Toolless Mounting Kit.
Includes: Installation guide, Toolless Mounting Kit.
Data sheet
- Cable length
- 1.83 m
- Colour of product
- Black
- Dimensions (WxDxH)
- 55 x 88 x 927 mm
- Input connection type
- IEC 309 32A 3P+N+PE
- Input frequency
- 47/63 Hz
- Maximum input current per phase
- 63 A
- Maximum total current draw per phase
- 400 A
- Nominal output voltage
- 400V
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating relative humidity range
- 5 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- -5 - 45 °C
- Output connections
- - (3) IEC 320 C13
- (6) IEC 320 C19 - Package dimensions (WxDxH)
- 286 x 70 x 1054 mm
- Package weight
- 6250 g
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -25 - 65 °C
- Weight
- 4750 g
Specific References
- EAN13
- 0731304251255
Rack PDU, Basic, Zero U, 22kW, 400V, (6) C19 & (3) C13
