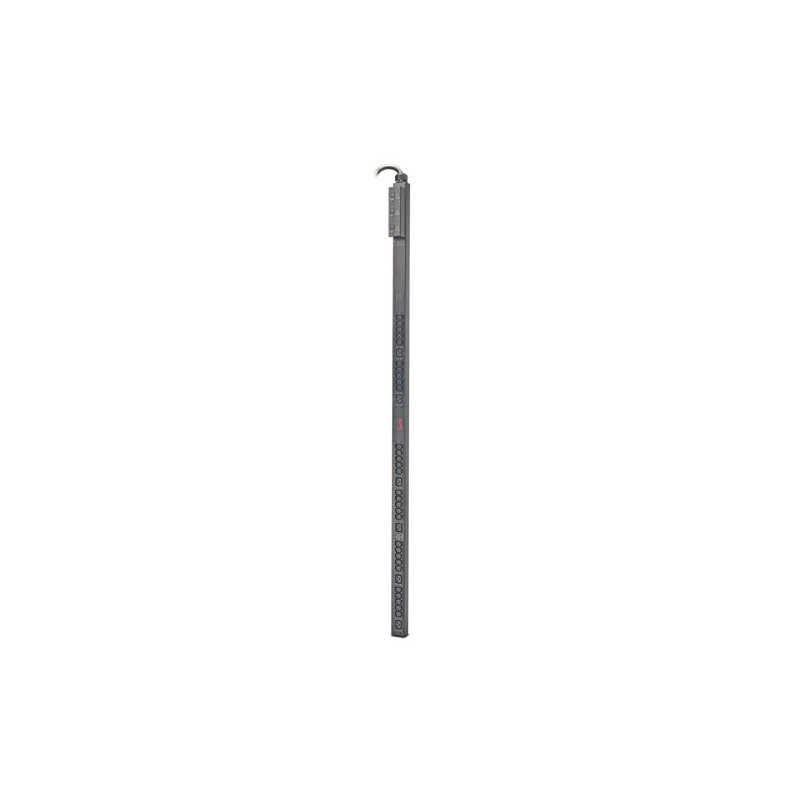

APC Basic Rack PDU AP7598
Rack PDU,Basic,Zero U,12.5kW,208V,(30)C13,(6)C19;10' Cord
APC Basic Rack PDU , Input: 208V 3PH , Input Connections: Compatible With Hubbell CS8365C , Cord Length: 10 feet ( 3.05 meters ) , Output: 208V , Output Connections: IEC 320 C13,IEC 320 C19.
Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
Data sheet
- Cable length
- 3.05 m
- Certification
- cUL, CSA C22.2 No. 60950-1-03, UL 60950-1, UL
- Colour of product
- Black
- Dimensions (WxDxH)
- 56 x 89 x 1778 mm
- Input connection type
- Hubbell CS8365C
- Maximum input current per phase
- 35 A
- Operating relative humidity range
- 5 - 95 %
- Operating temperature range (T-T)
- -5 - 45 °C
- Output connections
- 30 x IEC 320 C13,
6 x IEC 320 C19 - Package dimensions (WxDxH)
- 152 x 127 x 2108 mm
- Package weight
- 11.89 kg
- Source data-sheet
- Icecat.biz
- Storage relative humidity range
- 5 - 95 %
- Storage temperature range (T-T)
- -25 - 65 °C
- Weight
- 8.79 kg
Specific References
- EAN13
- 0731304226864
Rack PDU,Basic,Zero U,12.5kW,208V,(30)C13,(6)C19;10' Cord
