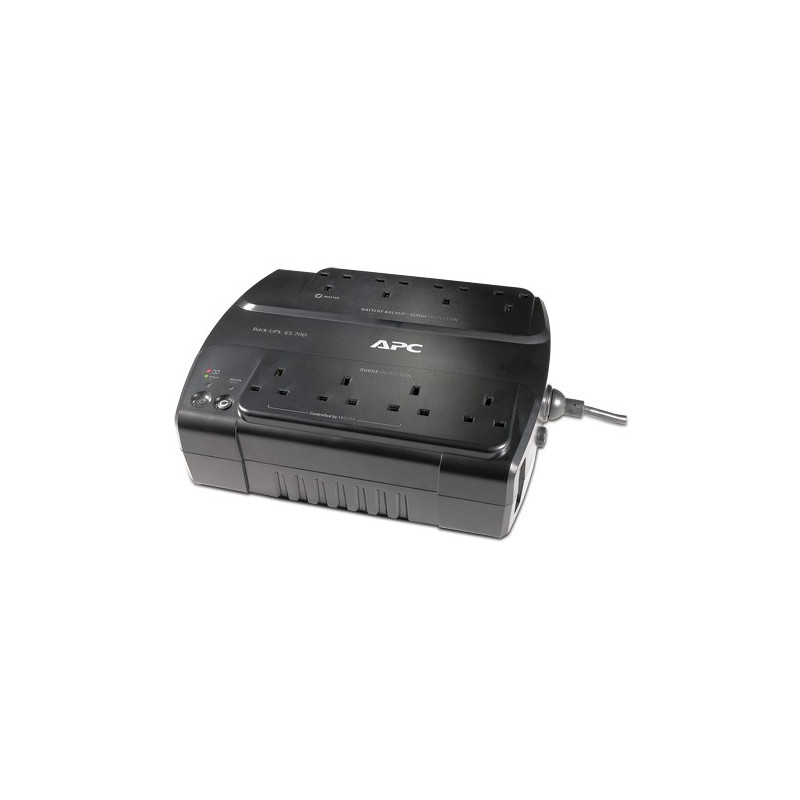

APC Power-Saving Back-UPS ES 8 Outlet 700VA 230V BS 1363
Power-Saving Back-UPS ES 8 Outlet 700VA 230V BS 1363
- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- 10/100 BaseT Connection - This reduces a major risk of downtime by providing detailed reports on battery age, load, health, etc facilitating the timely replacement of UPS batteries.
- Battery-protected and surge-only outlets - Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Dataline Surge Protection - Provides protection of connected equipment from power surges on the data lines.
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- 10/100 BaseT Connection - This reduces a major risk of downtime by providing detailed reports on battery age, load, health, etc facilitating the timely replacement of UPS batteries.
- Battery-protected and surge-only outlets - Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Hot-swappable batteries - Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Dataline Surge Protection - Provides protection of connected equipment from power surges on the data lines.
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Data sheet
- Battery recharge time
- 16 h
- Cable length
- 1.83 m
- Certification
- UL, FCC, CE, C-Tick, RoHS
- Colour of product
- Black
- Dimensions (WxDxH)
- 224 x 311 x 89 mm
- Nominal input voltage
- 83 - 159 VAC
- Nominal output voltage
- 400V
- Operating altitude
- 0 - 9000 m
- Operating relative humidity (H-H)
- 0 - 95 %
- Operating relative humidity range
- 0 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Output connections
- 8 x BS 1363
- Output power
- 405 W
- Output power capacity (VA)
- 700 VA
- Package dimensions (WxDxH)
- 279 x 400 x 127 mm
- Package weight
- 7840 g
- Power supply input frequency
- 47/63 Hz
- Replacement battery cartridge
- RBC17
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 0 - 95 %
- Storage relative humidity range
- 0 - 95 %
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -15 - 45 °C
- Surge energy rating
- 990 J
- Typical backup time at full load
- 3.5 min
- Typical backup time at half load
- 13.3 min
- Weight
- 6930 g
Specific References
- EAN13
- 0731304268345
