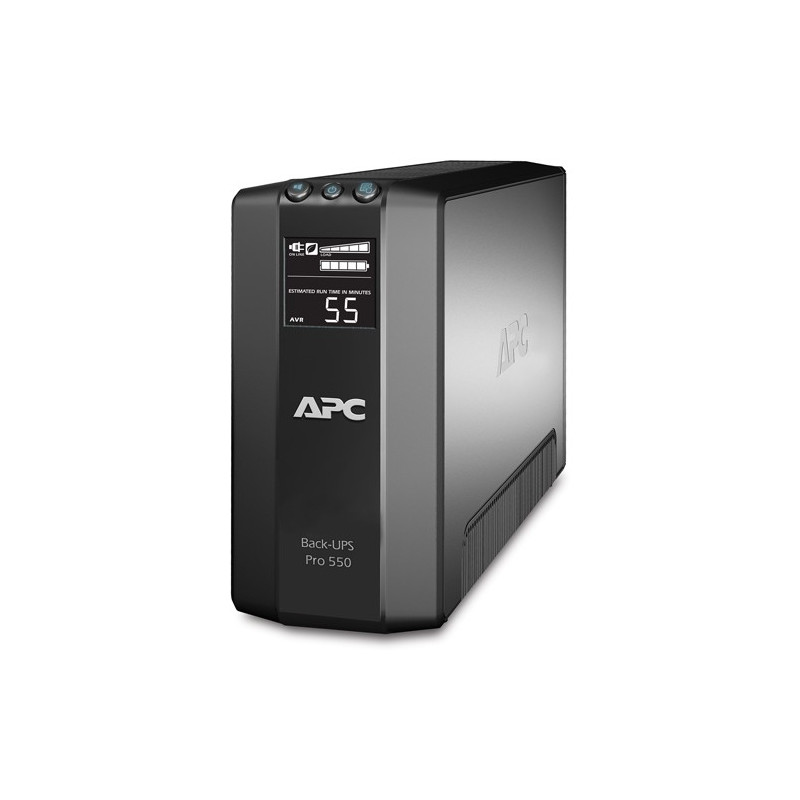

APC BR550GI Power-Saving Back-UPS Pro 550
  • APC BR550GI Power-Saving Back-UPS Pro 550
  • APC BR550GI Power-Saving Back-UPS Pro 550

APC Back-UPS Pro

Back UPS RS LCD 550 Master Control
Out of Stock
Reference: BR550GI

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Automatically cuts power to idle equipment to conserve electricity.



Gives higher application availability by correcting low and high voltage conditions without using the battery.



Text and mimic diagrams that display modes of operation, system parameters and alarms.



Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment



Gives higher application availability by correcting low and high voltage conditions without using the battery.



Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.

Data sheet

AC outlet types
C13 coupler
AC outlets quantity
6 AC outlet(s)
Battery capacity
66 VAh
Battery recharge time
12 h
Battery technology
Sealed Lead Acid (VRLA)
Bundled software
PowerChute Personal Edition
Cable length
1.83 m
Cables included
USB cable
Certification
A-tick, C-tick, CE, GOST, GS Mark, REACH, PEP, EOLI
Colour of product
Black
Depth
310 mm
Dimensions (WxDxH)
91 x 310 x 192 mm
Display
LCD
Efficiency
98.2 %
Height
990mm
Input operation voltage (max)
290 V
Input operation voltage (min)
155 V
Maximum current
6 A
Noise level
97.4 dB
Nominal input voltage
83 - 159 VAC
Nominal output voltage
400V
Non-operating altitude
9144 m
Operating altitude
914.4 - 2133 m
Operating relative humidity (H-H)
0 - 95 %
Operating relative humidity range
0 - 95 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 40 °C
Output connections
IEC 320 C13 (x3)/IEC 320 C13 (x3)
Output power
330 W
Output power capacity (VA)
550 VA
Package height
252 mm
Package weight
7710 g
Package width
985.6 mm
Power supply input frequency
50/60 Hz
Quantity per pallet
48 pc(s)
Replacement battery cartridge
APCRBC110
RoHS compliance
Yes
Source data-sheet
Icecat.biz
Storage relative humidity (H-H)
0 - 95 %
Storage relative humidity range
0 - 95 %
Storage temperature (T-T)
8 - 85 °C
Storage temperature range (T-T)
-15 - 45 °C
Surge energy rating
420 J
Surge protection features
Network
Typical backup time at full load
3.2 min
Typical backup time at half load
9.7 min
Waveform
Square
Weight
6530 g
Width
993 mm

Specific References

EAN13
0731304266884
