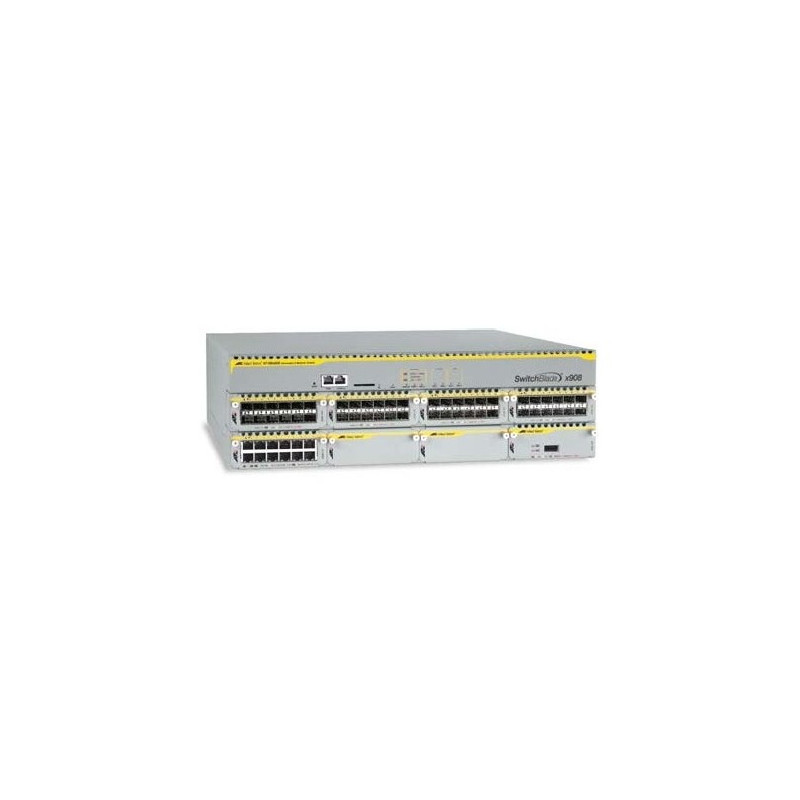

Allied Telesis 8 Slot Advanced Layer 3 Modular Switch
8 Slot Advanced Layer 3 Modular Switch
The Allied Telesis SwitchBlade® x908 industry
leading modular switch incorporates eight highspeed
60Gbps expansion bays, delivering a new
generation of high performance. The SwitchBlade
x908 provides scalable and versatile switching
solutions for today’s Enterprise networks.
The highly configurable SwitchBlade x908 3RU
modular switch combines an advanced IPv4 L3
feature set and comprehensive IPv6 routing
features, with wire-speed IPv6 hardware capability,
future proofing the network.
Featuring dual hot-swap PSUs, an advanced QoS
feature set,multicasting support, and LAN resiliency
support, the SwitchBlade x908 also provides
Service Provider capabilities such as a large L3
route table, and EPSR support.
Stacking between two units is supported via fixed
stacking connectors on the rear of the chassis,
providing 160Gbps of stacking bandwidth. Stacking
of more than two units is via expansion modules
(XEMs) on the front panel.
The SwitchBlade x908 incorporates the
AlliedWare Plus™ Operating System, using an
industry standard Command Line Interface (CLI),
facilitating effortless manageability.
leading modular switch incorporates eight highspeed
60Gbps expansion bays, delivering a new
generation of high performance. The SwitchBlade
x908 provides scalable and versatile switching
solutions for today’s Enterprise networks.
The highly configurable SwitchBlade x908 3RU
modular switch combines an advanced IPv4 L3
feature set and comprehensive IPv6 routing
features, with wire-speed IPv6 hardware capability,
future proofing the network.
Featuring dual hot-swap PSUs, an advanced QoS
feature set,multicasting support, and LAN resiliency
support, the SwitchBlade x908 also provides
Service Provider capabilities such as a large L3
route table, and EPSR support.
Stacking between two units is supported via fixed
stacking connectors on the rear of the chassis,
providing 160Gbps of stacking bandwidth. Stacking
of more than two units is via expansion modules
(XEMs) on the front panel.
The SwitchBlade x908 incorporates the
AlliedWare Plus™ Operating System, using an
industry standard Command Line Interface (CLI),
facilitating effortless manageability.
Data sheet
- Basic switching RJ-45 Ethernet ports quantity
- 64
- Certification
- UL, cUL,TUV
RoHS - Dimensions (WxDxH)
- 440 x 456 x 132 mm
- Electromagnetic compatibility
- EN55022 class A, FCC class A,VCCI class A
- Flash memory
- 96 MB
- Form factor
- 3U
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- MAC address table
- 96000 entries
- Maximum data transfer rate
- 80 Gbit/s
- Mean time between failures (MTBF)
- 150000 h
- Memory type
- DDR SDRAM SODIMM
- Operating altitude
- 0 - 3050 m
- Operating relative humidity (H-H)
- 5 - 80 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Power consumption (typical)
- 510 W
- Power over Ethernet (PoE) support
- No
- Power requirements
- 100-240V@47-63Hz; 36-72V
- Power supply type
- AC/DC
- Safety
- UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950
- Source data-sheet
- Icecat.biz
- Storage relative humidity (H-H)
- 5 - 95 %
- Storage relative humidity range
- 5 - 95 %
- Storage temperature (T-T)
- -30 - 70 °C
- Switching capacity
- 640 Gbit/s
- Weight
- 14320 g
Specific References
- EAN13
- 7670351875256
