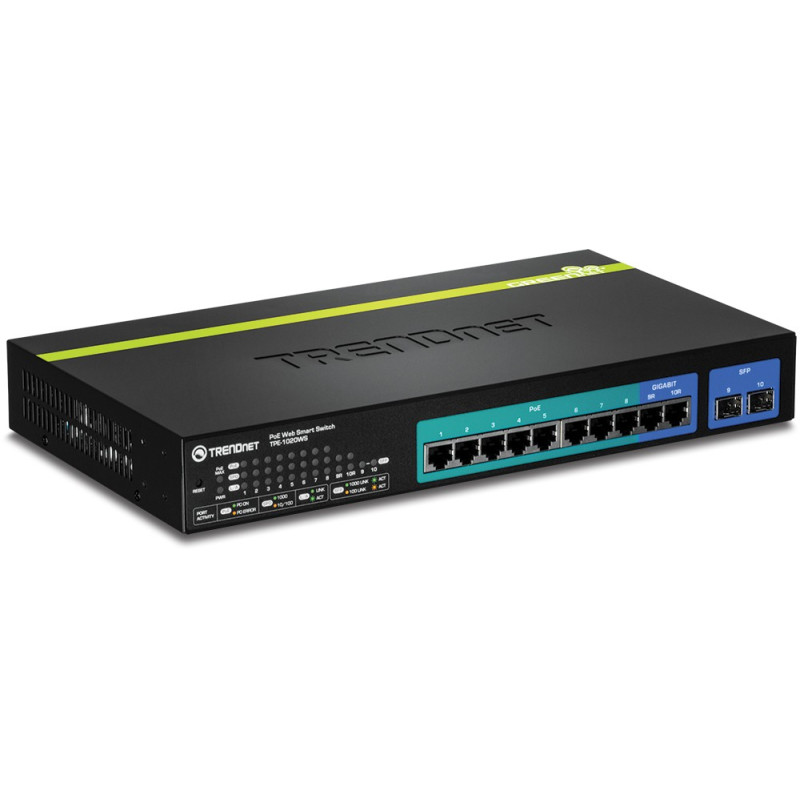

Trendnet TPE-1020WS 10-Port Gigabit Web Smart PoE+ Switch
10-Port Gigabit Web Smart PoE+ Switch
TRENDnet’s 10-Port Gigabit Web Smart PoE+ Switch, model TPE-1020WS, delivers a 20 Gbps switching capacity with eight PoE+ Gigabit ports and two Gigabit Ethernet uplink ports shared with two SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet, and monitoring features at a reduced cost.
Data sheet
- 10G support
- No
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Certification
- CE
FCC - Colour of product
- Black
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Depth
- 183 mm
- DHCP client
- Yes
- DHCP server
- Yes
- Height
- 44.45 mm
- MAC address table
- 96000 entries
- Management
- Smart Managed
- Management protocols
- HTTP/HTTPS (SSL v2/3 TLS), Web-based GUI, SNMP v1/v2c/v3, LLDP
- MIB support
- MIB II RFC 1213
- Mounting
- Rackmount
- Networking standards
- IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Number of VLANs
- 8000
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 45 °C
- PoE Ports Qty
- 8
- Power consumption (typical)
- 92.3 W
- Power over Ethernet (PoE) support
- Yes
- RJ45 Ports Qty
- 8
- Security algorithms
- 802.1x RADIUS,SSL/TLS
- Security algorithms supported
- 802.1x RADIUS, SSL/TLS
- SFP Ports Qty
- 2
- Source data-sheet
- Icecat.biz
- Stackable
- No
- Switch layer
- L7
- Switch Speed
- Gigabit
- Switching capacity
- 993.6 Gbps
- Throughput
- 14.88 Mpps
- Weight
- 1900 g
- Width
- 993 mm
Specific References
- EAN13
- 0710931160079
