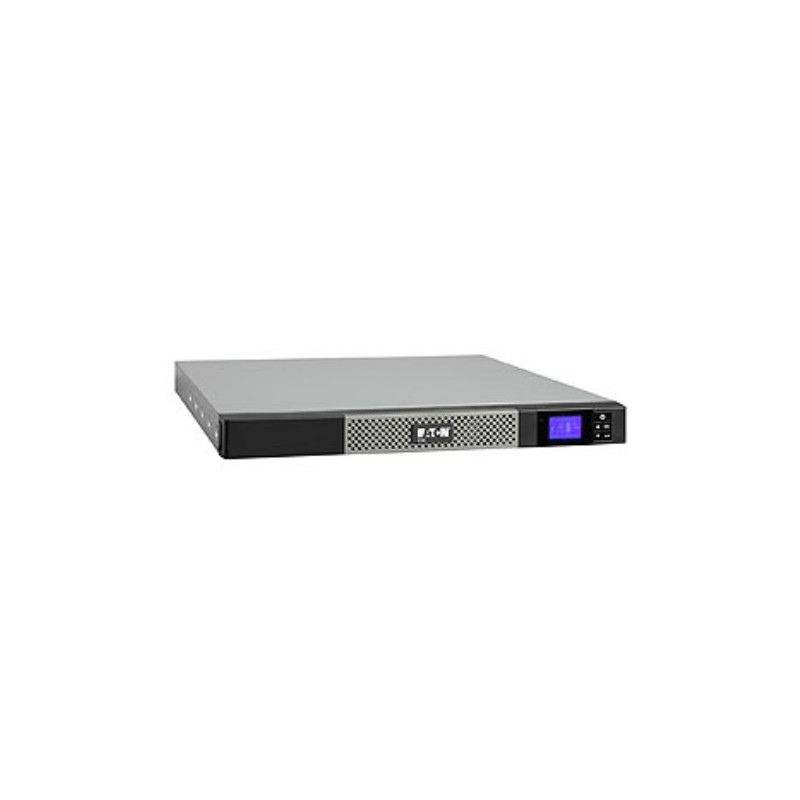

Eaton 5P 650i VA Rack 1U
Eaton 5P650IR, 650 VA, 420 W, 160 V, C14 coupler, C13 coupler, 9 min
The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.
Features
- Next-generation graphical LCD display (7 languages)
- Energy efficient (up to 98% efficiency)
- Energy metering
- Advance Battery Management (ABM)
- Switched outlet groups
- Sinewave output
- Wide communication offer (compatible with virtual environment)
Features
- Next-generation graphical LCD display (7 languages)
- Energy efficient (up to 98% efficiency)
- Energy metering
- Advance Battery Management (ABM)
- Switched outlet groups
- Sinewave output
- Wide communication offer (compatible with virtual environment)
Data sheet
- AC outlet types
- C14 coupler
- AC outlets quantity
- 4 AC outlet(s)
- Certification
- IEC/EN 62040-2, IEC/EN 62040-3
CE, CB, TÜV - Colour of product
- Black
- Depth
- 364 mm
- Display
- LCD
- Efficiency
- 98 %
- Height
- 990mm
- Input operation voltage (max)
- 294 V
- Input operation voltage (min)
- 96 V
- Noise level
- 97.4 dB
- Operating temperature (T-T)
- 8 - 35 °C
- Output operation voltage (max)
- 415 V
- Output operation voltage (min)
- 200 V
- Output power
- 420 W
- Output power capacity (VA)
- 650 VA
- Power plug
- C13 coupler
- Power supply input frequency
- 50/60 Hz
- Rack capacity
- 9U
- RS-232 ports
- 2
- Safety
- IEC/EN 62040-1, UL 1778
- Source data-sheet
- Icecat.biz
- Typical backup time at full load
- 2 min
- Typical backup time at half load
- 9 min
- USB 2.0 ports quantity
- 7
- Waveform
- Square
- Weight
- 8600 g
- Width
- 438 mm
Specific References
- EAN13
- 0743172042903
