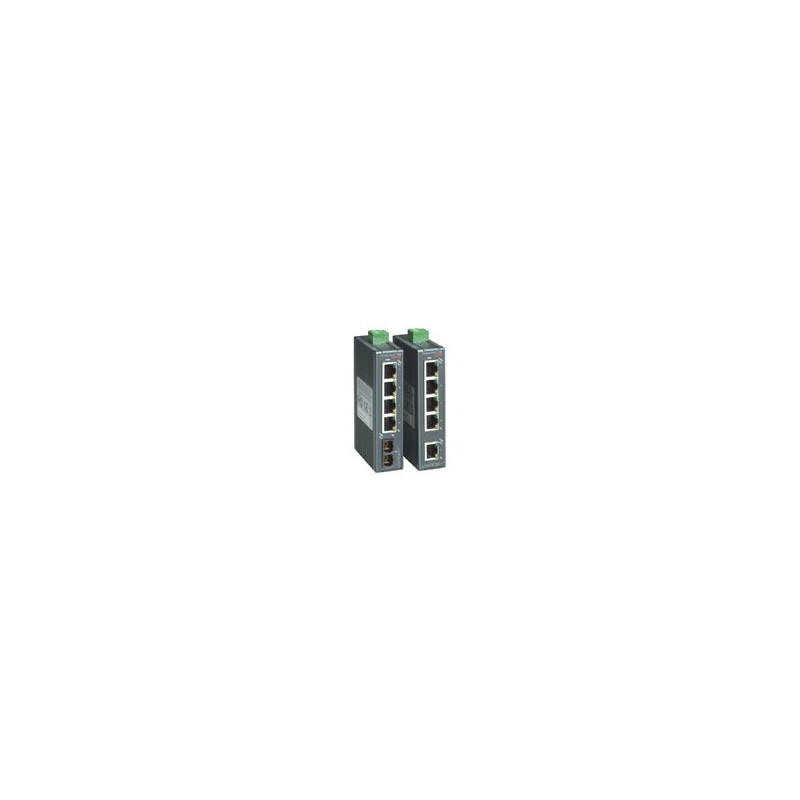

Lantronix XPress-Pro SW 52012F
4 x 10/100Base-TX ports, 1 x 100Base-FX port, 2048 MAC addresses, Din Rail
Industrial -10 -60°C 4-Port 10/100TX, 1-Port 100BaseFX MM SC Connector Ethernet Switch with Din Rail
With a complete line of rugged, dependable, affordable Ethernet switches, the XPress-Pro SW series delivers a total networking solution for the industrial environment.
Part of the DeviceLinx family of network enablement products, XPress-Pro SW series managed and unmanaged Ethernet switches from Lantronix are designed to give you performance you can count on in the harsh environments often found at the edge of the network.
Whether they’re on the factory floor or in the field, XPress-Pro switches will provide flawless communication when you need it most. These full-featured Ethernet switches are the latest Lantronix innovations for the industrial automation marketplace.
The XPress-Pro SW 52000 compact, fast Ethernet switches are equipped with 5-port 10/100Base-TX or 4-port 10/100Base-TX plus 1-port 100Base-FX networking. By using standard auto-negotiation and the inclusion of auto-MDIX, Lantronix delivers a cost-effective way of integrating legacy 10 Mbps networks with 100 Mbps fast Ethernet networks.
SW 52000 TX ports auto-negotiate for 10/100 Mbps speed and auto detect full or half-duplex mode. The fiber port on the SW 52012F accommodates multimode SC with a fiberoptic connection between two nodes that can reach up to two kilometers. SW 52000 series switches can be DIN-rail mounted and are equipped with terminal block power input to accommodate just about any application that requires an Ethernet switch.
- 2048 MAC addresses
- 384 kilobit buffer memory
- 0.1A max, 12 to 48 VDC power input
- -10° to 60° C (14° to 140° F) operating temperature range
- Industrial plastic case supports DIN-rail mounting
With a complete line of rugged, dependable, affordable Ethernet switches, the XPress-Pro SW series delivers a total networking solution for the industrial environment.
Part of the DeviceLinx family of network enablement products, XPress-Pro SW series managed and unmanaged Ethernet switches from Lantronix are designed to give you performance you can count on in the harsh environments often found at the edge of the network.
Whether they’re on the factory floor or in the field, XPress-Pro switches will provide flawless communication when you need it most. These full-featured Ethernet switches are the latest Lantronix innovations for the industrial automation marketplace.
The XPress-Pro SW 52000 compact, fast Ethernet switches are equipped with 5-port 10/100Base-TX or 4-port 10/100Base-TX plus 1-port 100Base-FX networking. By using standard auto-negotiation and the inclusion of auto-MDIX, Lantronix delivers a cost-effective way of integrating legacy 10 Mbps networks with 100 Mbps fast Ethernet networks.
SW 52000 TX ports auto-negotiate for 10/100 Mbps speed and auto detect full or half-duplex mode. The fiber port on the SW 52012F accommodates multimode SC with a fiberoptic connection between two nodes that can reach up to two kilometers. SW 52000 series switches can be DIN-rail mounted and are equipped with terminal block power input to accommodate just about any application that requires an Ethernet switch.
- 2048 MAC addresses
- 384 kilobit buffer memory
- 0.1A max, 12 to 48 VDC power input
- -10° to 60° C (14° to 140° F) operating temperature range
- Industrial plastic case supports DIN-rail mounting
Data sheet
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Certification
- RoHS
- Colour of product
- Grey
- Connectivity technology
- Wired
- Copper ethernet cabling technology
- 100BASE-TX,10BASE-T
- Dimensions (WxDxH)
- 25 x 70 x 110 mm
- Electromagnetic compatibility
- FCC Part 15, Class A
- Ethernet LAN (RJ-45) ports quantity
- 4
- Fiber optic connector
- XFP
- Housing material
- Zinc steel
- Input current
- 0.1 A
- Input voltage
- 10 - 48 V
- Installed ports
- 5
- Latency
- 5.1 μs
- MAC address table
- 96000 entries
- Mounting
- DIN-rail
- Networking standards
- IEEE 802.3,IEEE 802.3u,IEEE 802.3x
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- -10 - 60 °C
- Ports quantity
- 5
- Power consumption (typical)
- 2.4 W
- Power over Ethernet (PoE) support
- No
- Relative humidity
- 10 - 90 %
- Safety
- UL 60950
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- -25 - 85 °C
- Storage temperature range (T-T)
- -25 - 85 °C
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Transmission distance (max)
- 2 km
- Wavelength
- [1250 nm – 1600 nm]
- Weight
- 200 g
- Wireless LAN connection
- No
Specific References
- EAN13
- 0783384233096
4 x 10/100Base-TX ports, 1 x 100Base-FX port, 2048 MAC addresses, Din Rail
