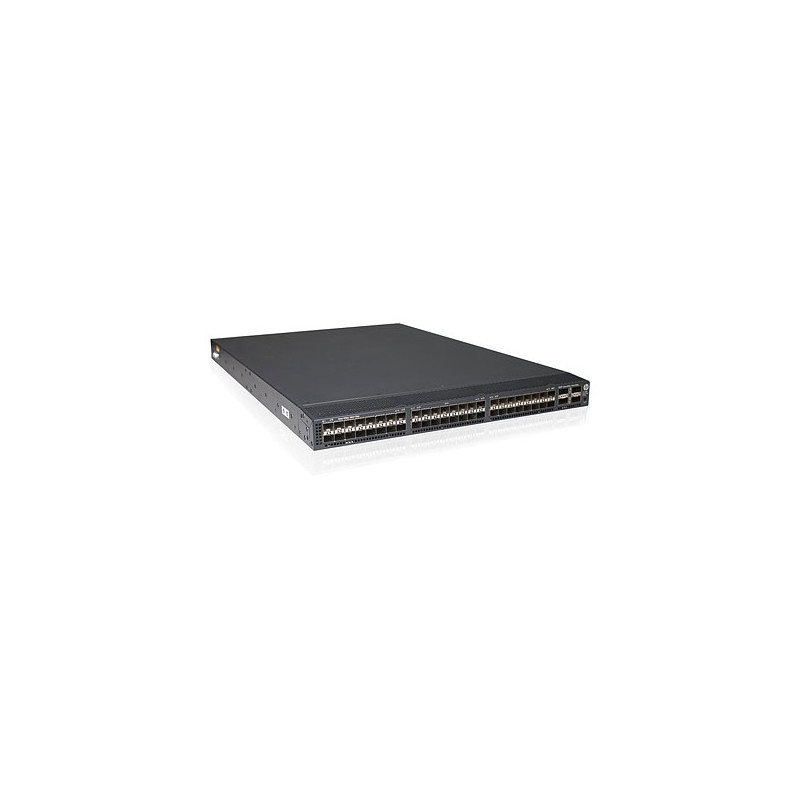

Hewlett Packard Enterprise FlexFabric 5900AF 48G 4XG 2QSFP+
FlexFabric 5900AF 48G 4XG 2QSFP+ Switch
The HPE 5900 Switch Series are low-latency 1/10GbE data center top-of-rack (ToR) switches. Perfect for deployment at server access layer in large and medium sized enterprises. These switches may also be used in campus core/distribution layers where higher performance 40GbE connectivity is required with 10GbE links. Virtualized applications and server-to-server traffic require ToR switches that meet the needs for higher-performance server connectivity, convergence, virtual environment support, and low-latency. Optional Intelligent Management Center (IMC) Software Platform for network management.
What's new
- High 1/10GbE port density and low latency for demanding applications.
- 10/100/1000/10000BASE-T and fiber support for data center deployments.
- IRF support of nine switches simplifies management by up to 88%.
- OpenFlow and SDN automate manual tasks and speed service delivery.
Features
Ultra-low-latency and Wire Speed for Demanding Applications
- The HPE FlexFabric 5900 Switch Series provides high density 10/100/1000/10000BASE-T, or fiber ports for high-performance and flexible deployments.
- All ports support full L2/L3 features, IPv4/IPv6 dual stack, OpenFlow and TRILL for high scalability and Software-defined Network (SDN) support.
- Intelligent Resilient Fabric (IRF) for simpler management, faster re-convergence and business agility.
High-Performance Data Center Switching
- The HPE FlexFabric 5900 Switch Series delivers 1.28 Tbps switching capacity for the most demanding applications.
- Supports up to 952 MPPS throughput for data intensive environments.
- Low latency, under a 1.5 us 10GbE latency, provides increased performance.
- Four 40GbE QSFP+ ports for blazing fast uplinks.
Business Agility and Resilience with Comware 7
- The HPE FlexFabric 5900 Switch Series delivers IRF < 50 msec convergence time enabling faster application response times.
- In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCO
- The HPE FlexFabric 5900 Switch Series simplifies switch management by up to 88% with IRF.
- No extra hidden cost with simple one license per switch for all OS features.
- All switch ports are active and ready to use without need for activation licenses.
- Automate tedious tasks with SDN and reclaim wasted resources.
What's new
- High 1/10GbE port density and low latency for demanding applications.
- 10/100/1000/10000BASE-T and fiber support for data center deployments.
- IRF support of nine switches simplifies management by up to 88%.
- OpenFlow and SDN automate manual tasks and speed service delivery.
Features
Ultra-low-latency and Wire Speed for Demanding Applications
- The HPE FlexFabric 5900 Switch Series provides high density 10/100/1000/10000BASE-T, or fiber ports for high-performance and flexible deployments.
- All ports support full L2/L3 features, IPv4/IPv6 dual stack, OpenFlow and TRILL for high scalability and Software-defined Network (SDN) support.
- Intelligent Resilient Fabric (IRF) for simpler management, faster re-convergence and business agility.
High-Performance Data Center Switching
- The HPE FlexFabric 5900 Switch Series delivers 1.28 Tbps switching capacity for the most demanding applications.
- Supports up to 952 MPPS throughput for data intensive environments.
- Low latency, under a 1.5 us 10GbE latency, provides increased performance.
- Four 40GbE QSFP+ ports for blazing fast uplinks.
Business Agility and Resilience with Comware 7
- The HPE FlexFabric 5900 Switch Series delivers IRF < 50 msec convergence time enabling faster application response times.
- In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCO
- The HPE FlexFabric 5900 Switch Series simplifies switch management by up to 88% with IRF.
- No extra hidden cost with simple one license per switch for all OS features.
- All switch ports are active and ready to use without need for activation licenses.
- Automate tedious tasks with SDN and reclaim wasted resources.
Data sheet
- 10G support
- Yes
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-240 V
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Colour of product
- Grey
- Copper ethernet cabling technology
- 1000BASE-T,100BASE-TX,10BASE-T
- Depth
- 460 mm
- DHCP client
- Yes
- DHCP server
- Yes
- Dimensions (WxDxH)
- 439.9 x 460 x 43.7 mm
- Electromagnetic compatibility
- VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR 22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
- Flash memory
- 96 MB
- Heat dissipation
- 887 BTU/h
- Height
- 43.7 mm
- I/O ports
- 48 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 fixed 1000/10000 SFP+ ports; 2 QSFP+ 40-GbE ports; 1 RJ-45 serial co - Input voltage
- 100-240 VAC; -36 to -72 VDC (depending on power supply chosen)
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Latency
- 10 Gbps Latency: < 1.5 µs (64-byte packets)
- Latency (10 Gbps)
- 1.5 µs
- MAC address table
- 96000 entries
- Management platform
- IMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP
- Memory type
- SDRAM
- Networking standards
- IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating relative humidity range
- 10 to 90 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 45 °C
- Packet buffer memory
- 9 MB
- Power consumption (typical)
- 260 W
- Safety
- UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
- Source data-sheet
- Icecat.biz
- Switch layer
- L7
- Switching capacity
- 336 Gbit/s
- Throughput
- 250 Mpps
- USB 2.0 ports quantity
- 7
- Weight
- 13000 g
- Width
- 439.9 mm
Specific References
- EAN13
- 0887111061720
