Trendnet TE100-ECFX
IEEE 802.3u/x, IEEE802.1Q/p, 200Mbps, PCI-E, 45g

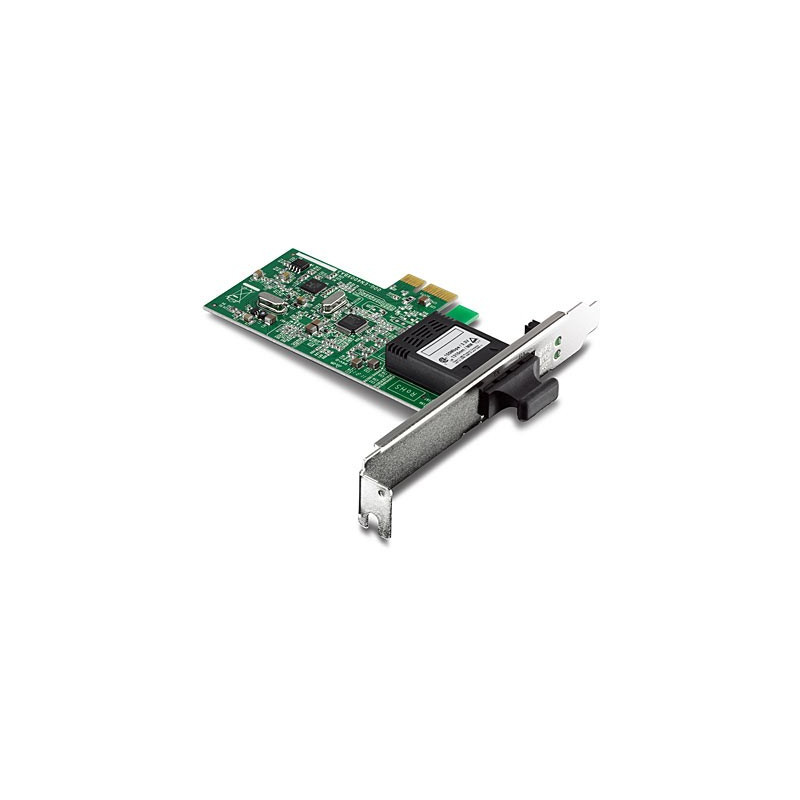

The 100Base SC Fiber PCIe Adapter, model TE100-ECFX, provides a reliable high performance connection from a PC or server to a Multi-Mode SC-type fiber connection for distances of up to 2 kilometers. Full-Duplex technology generates data rates of up to 200 Mbps.
Supports Wake-on-LAN, remote wake-up, 802.1p priority encoding, and 802.1Q VLAN tagging. Compatible with Microsoft Windows 8, Windows 7, Windows Server 2008, Unix, Mac OS, and Linux operating systems.
Supports Wake-on-LAN, remote wake-up, 802.1p priority encoding, and 802.1Q VLAN tagging. Compatible with Microsoft Windows 8, Windows 7, Windows Server 2008, Unix, Mac OS, and Linux operating systems.
Data sheet
- Certification
- CE, FCC
- Compatibility
- PC
- Compatible operating systems
- Windows Server 2003/2008
- Connectivity technology
- Wired
- Connector(s)
- SC
- Data transfer rate
- 0.1 Gbit/s
- Data transfer rate (max)
- 200 Mbit/s
- Depth
- 117 mm
- Form factor
- LP
- Height
- 57 mm
- Host interface
- PCI-E
- Maximum operating distance
- 2 m
- Networking standards
- IEEE 802.1p,IEEE 802.1Q,IEEE 802.3u,IEEE 802.3x
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 50 °C
- Power consumption (typical)
- 9W
- RoHS compliance
- Yes
- Source data-sheet
- Icecat.biz
- Storage temperature (T-T)
- 8 - 85 °C
- Storage temperature range (T-T)
- -10 - 70 °C
- Width
- 107 mm
- Windows operating systems supported
- Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Pro,Windows Vista Business,Windo
Specific References
- EAN13
- 0710931140019
IEEE 802.3u/x, IEEE802.1Q/p, 200Mbps, PCI-E, 45g
