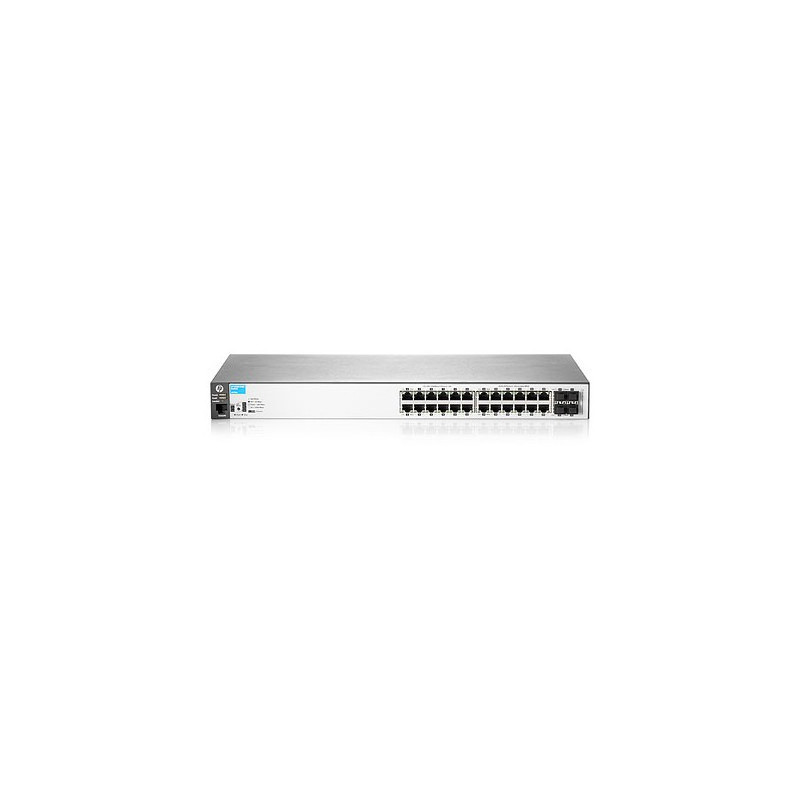

Hewlett Packard Enterprise 2530-24G
2530-24G - Gigabit Ethernet, RJ-45, ARM9E 800 MHz, 128 MB flash, 128 MB DDR3, 2.3 µs, 56 Gbps, 2770g, Black
The HP 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable and secure connectivity for business networks.
Quality of Service (QoS)
Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP)
Management
Choice of management interfaces: Web graphical user interface (GUI): HTML-based easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line (CLI): robust command-line interface provides advanced configuration and diagnostics. Simple Network Management Protocol (SNMPv1/v2c/v3): allows switch to be managed with a variety of third-party network management applications.
Connectivity
IPv6 host: allows the switch to be deployed and managed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.
Layer 2 switching
VLANs: provide support for 512 VLANs and 4,094 VLAN IDs
Security
Access control lists (ACLs): accomnodates IPv4/IPv6 port and VLAN-based ACLs
Convergence
LLDP-MED (Media Endpoint Discovery): is a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones
Resiliency and high availability
Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections. Supports L2, L3, and L4 trunk-load-balancing algorithm. IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration.
Quality of Service (QoS)
Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP)
Management
Choice of management interfaces: Web graphical user interface (GUI): HTML-based easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line (CLI): robust command-line interface provides advanced configuration and diagnostics. Simple Network Management Protocol (SNMPv1/v2c/v3): allows switch to be managed with a variety of third-party network management applications.
Connectivity
IPv6 host: allows the switch to be deployed and managed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): supports connectivity for both protocols; provides a transition mechanism from IPv4 to IPv6. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.
Layer 2 switching
VLANs: provide support for 512 VLANs and 4,094 VLAN IDs
Security
Access control lists (ACLs): accomnodates IPv4/IPv6 port and VLAN-based ACLs
Convergence
LLDP-MED (Media Endpoint Discovery): is a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network devices such as IP phones
Resiliency and high availability
Port trunking and link aggregation: Trunking: supports up to eight links per trunk to increase bandwidth and create redundant connections. Supports L2, L3, and L4 trunk-load-balancing algorithm. IEEE 802.3ad Link Aggregation Protocol (LACP): eases configuration of trunks through automatic configuration.
Data sheet
- 10G support
- No
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100-127 V
- Auto MDI/MDI-X
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Built-in processor
- ARM9E
- Colour of product
- Black
- Connectivity technology
- Wired
- Depth
- 254 mm
- Electromagnetic compatibility
- FCC, EN, VCCI
- Ethernet interface type
- Fast Ethernet,Gigabit Ethernet
- Ethernet LAN (RJ-45) ports quantity
- 24
- Ethernet LAN data transfer rates
- 10, 100, 1000 Mbit/s
- Fiber optic connector
- XFP
- Flash memory
- 96 MB
- Form factor
- 19U
- Height
- 990mm
- Internal memory
- ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots
- Latency
- 2.3 µs
- Management protocols
- LLDP, SNMP, LLDP-MED, SNMPv1/v2c/v3
- Maximum data transfer rate
- 96 Gbit/s
- Memory type
- DDR3
- Networking features
- Yes
- Networking standards
- IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
- Noise level
- 97.4 dB
- Operating altitude
- 914.4 - 2133 m
- Operating relative humidity (H-H)
- 15 - 95 %
- Operating relative humidity range
- 15 - 95 %
- Operating temperature (T-T)
- 8 - 35 °C
- Operating temperature range (T-T)
- 0 - 40 °C
- Ports quantity
- 28
- Power consumption (typical)
- 48 W
- Power over Ethernet (PoE) support
- Yes
- Processor clock speed
- 800 MHz
- Safety
- CAN/CSA, EN, UL
- Source data-sheet
- Icecat.biz
- Supported data transfer rates
- x1 115.2 Kbits/sec., x2 230.4 Kbits/sec., x4 460.9 Kbits/sec
- Switching capacity
- 993.6 Gbps
- Throughput
- 41600000 Mpps
- Weight
- 2770 g
- Width
- 443 mm
Specific References
- EAN13
- 0886112458492
