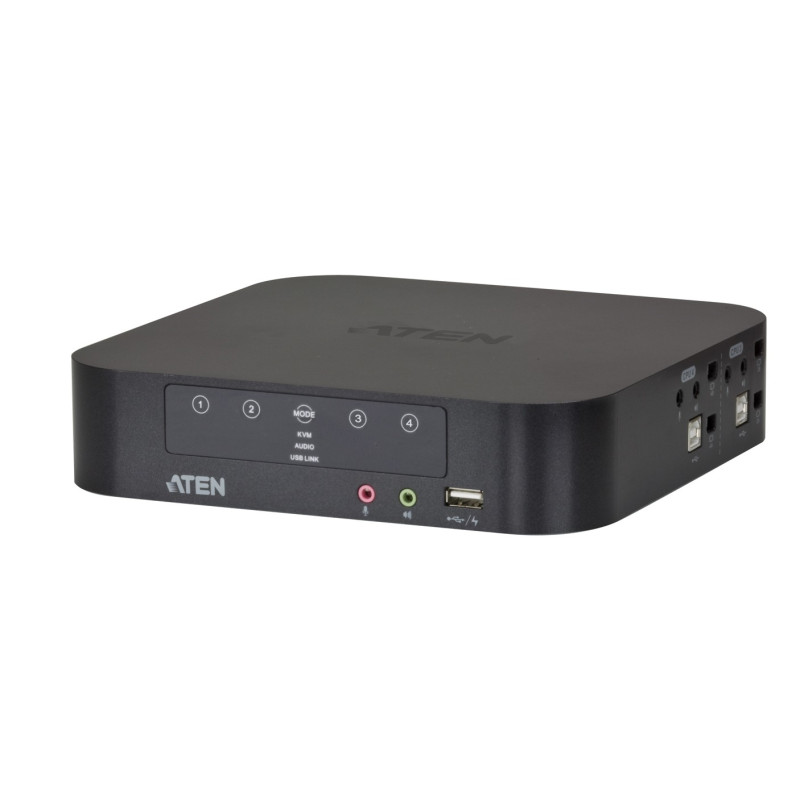

Aten CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch
  • Aten CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch
  • Aten CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch
  • Aten CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch
  • Aten CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch

Aten CS1944

4-Port USB Mini DisplayPort Dual-View KVM Switch with Audio & USB 2.0 Hub (KVM cables included)
Out of Stock
Reference: CS1944

Require Project Pricing?

Click here to email your parts list and we will send you a quote
Features

- One dual-view USB console independently and simultaneously controls four Mini DisplayPort computers and two USB devices

- USB quick charge mode (front panel USB port)

- Mini DisplayPort 1.1a & HDCP compatible

- Full bass response provides a rich experience for digital surround sound systems via Mini-TOSLINK

- Superior video quality – enables up to 2560 x 1600 resolution and 3D displays up to 1920x1080 resolution at 120Hz

- Nvidia 3D Vision Ready

- 2-port USB 2.0 hub built in, fully compliant with USB 2.0 specifications

- Computer selection via front touch panel /hotkeys/ mouse

- Independent switching for USB peripherals, audio, and KVM focus

- Keyboard and Mouse support emulation and bypass

- Power on Detection

- Mac keyboard support and emulation

- Multilingual keyboard mapping – Supports English, Japanese, and French keyboards

- Multiplatform support – Windows, Linux and Mac



Package Contents

- 1x CS1944 4-port USB 2.0 Dual View Mini DisplayPort KVMP™ Switch

- 4x Mini DisplayPort 1.1a 1 m Cable

- 4x Mini DisplayPort 1.1a 2 m Cable

- 4x USB 2.0 1.8 m Cable

- 4x LIN5-0205-21DG Audio Jack 1.8 m Cable Sets

- 1x 0AD6-1605-24EG Power Adapter

- 1x User Instructions

Data sheet

Built-in display
No
Cables included
KVM
Colour of product
Black
DC-in jack
Yes
Depth
197 mm
Height
44.7 mm
I/O ports
Mini DisplayPort
USB
Mini TOSLINK
3.5mm
Keyboard port type
USB
Material
Plastic
Maximum resolution
2560 x 1600 pixels
Mouse port type
USB
Number of computers controlled
4
Operating relative humidity (H-H)
0 - 80 %
Operating relative humidity range
0 - 80 %
Operating temperature (T-T)
8 - 35 °C
Operating temperature range (T-T)
0 - 50 °C
Power consumption (typical)
8.63 W
Power requirements
DC 5.3V
RoHS compliance
Yes
Scan interval
5 s
Source data-sheet
Icecat.biz
Storage temperature (T-T)
-20 - 60 °C
Storage temperature range (T-T)
-20 - 60 °C
USB 2.0 ports quantity
7
Video port type
DisplayPort
Weight
614 g
Width
993 mm

Specific References

EAN13
4710423778078
